Suitcase Pulsed Laser Cleaning Machine – 100W / 200W / 300W / 500W Air-Cooled

Built for On-Site and Workshop Cleaning

The BV-SPR series puts a complete pulsed fiber laser cleaning system into a rugged trolley case with built-in wheels and a telescopic handle. Unlike water-cooled cleaners, the air-cooled design needs no chiller, no water lines and almost no maintenance — open the case, plug in single-phase 220V, and start cleaning. The 5 m fiber delivers the beam to a handheld gun weighing under 0.9 kg, so operators can work comfortably on large parts, molds and structures that cannot be moved.

Key Features

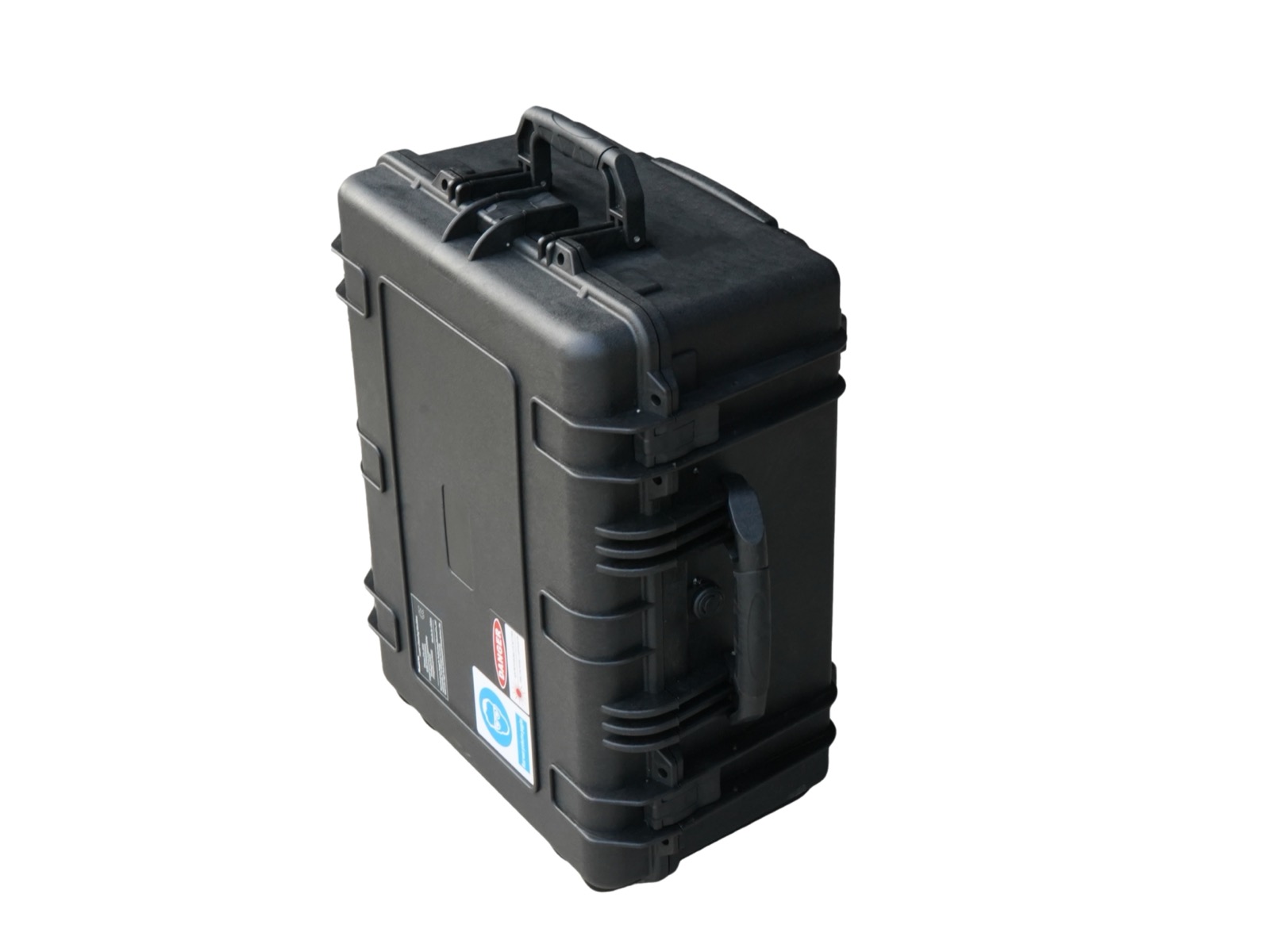

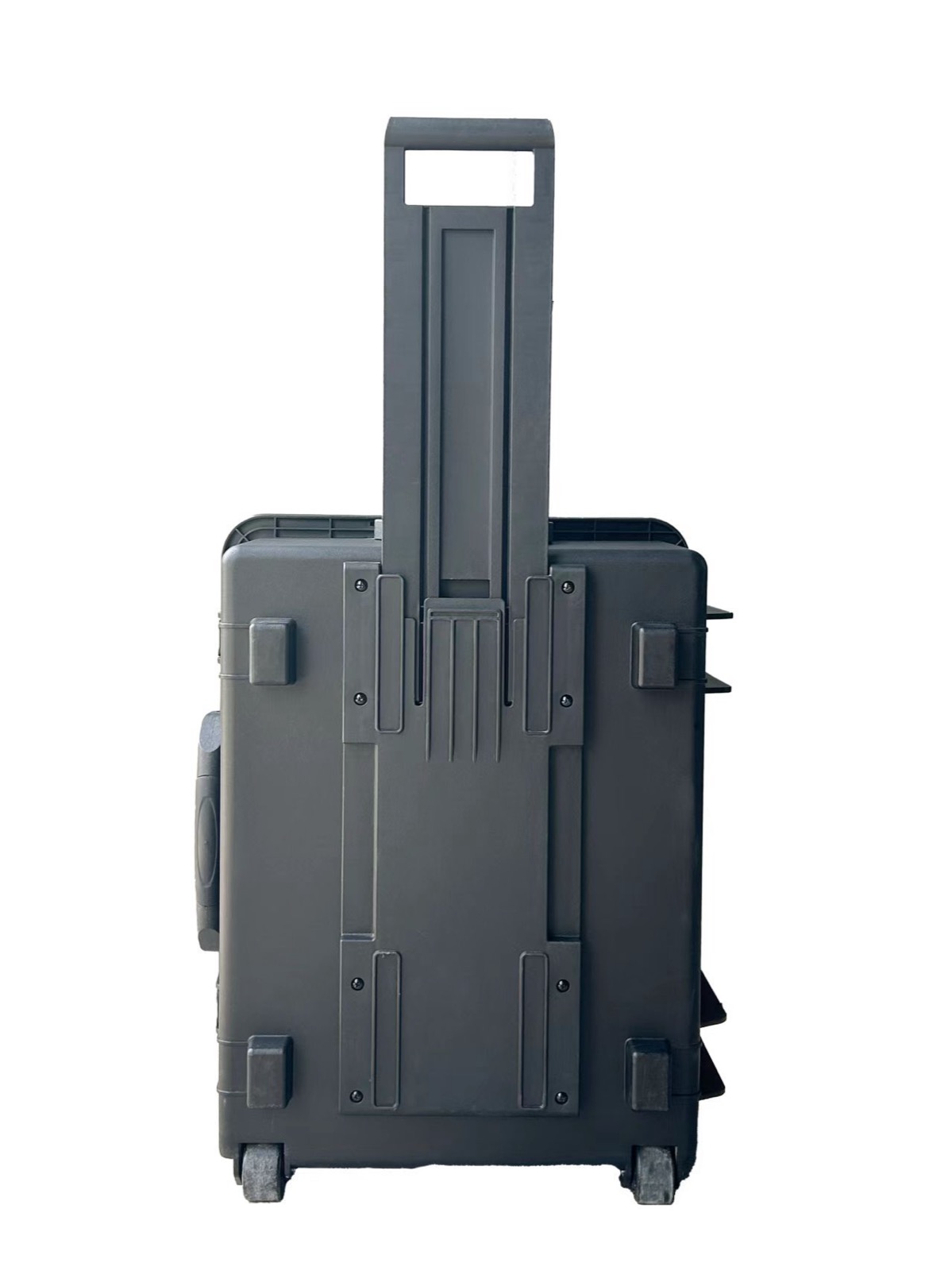

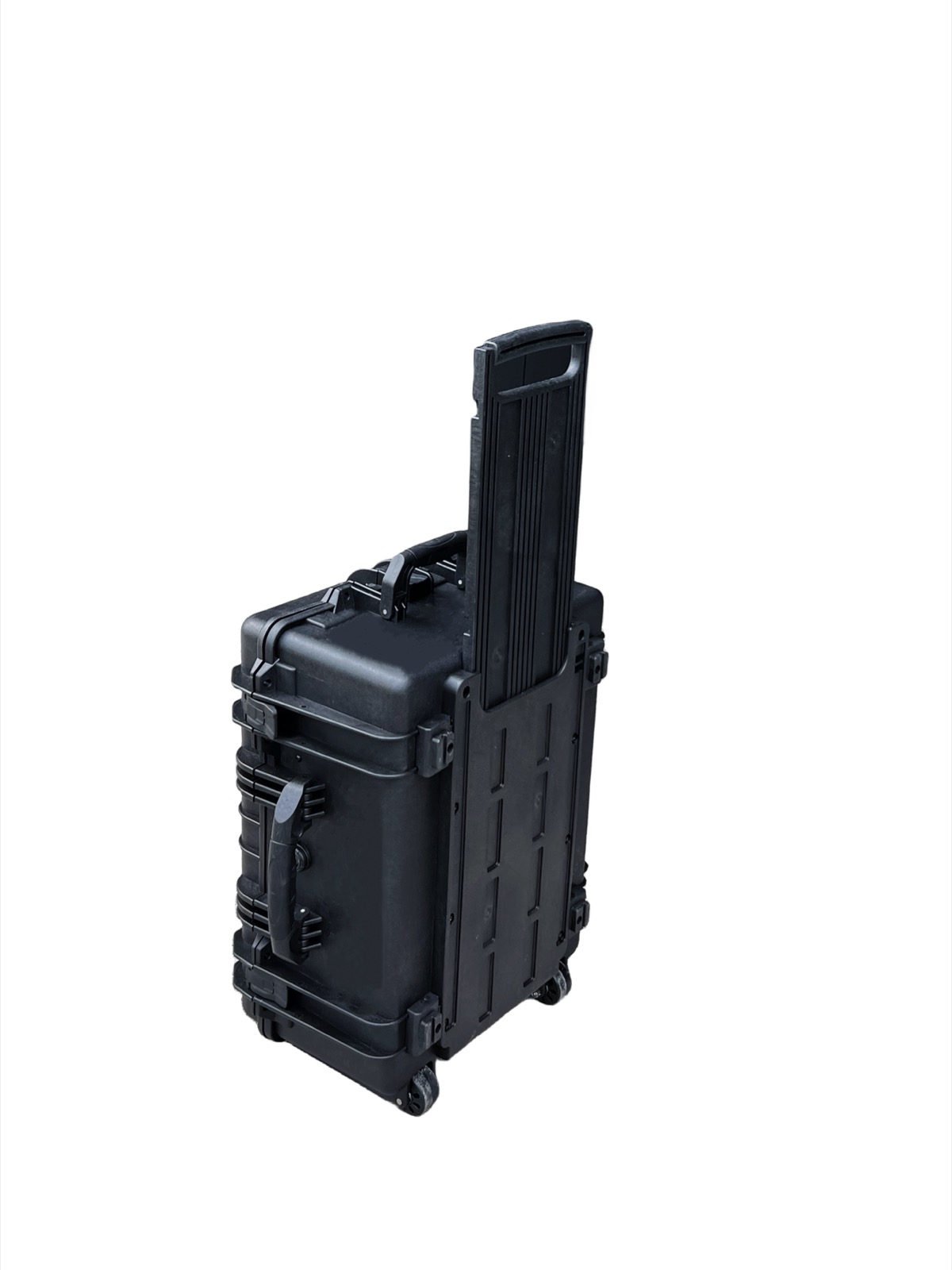

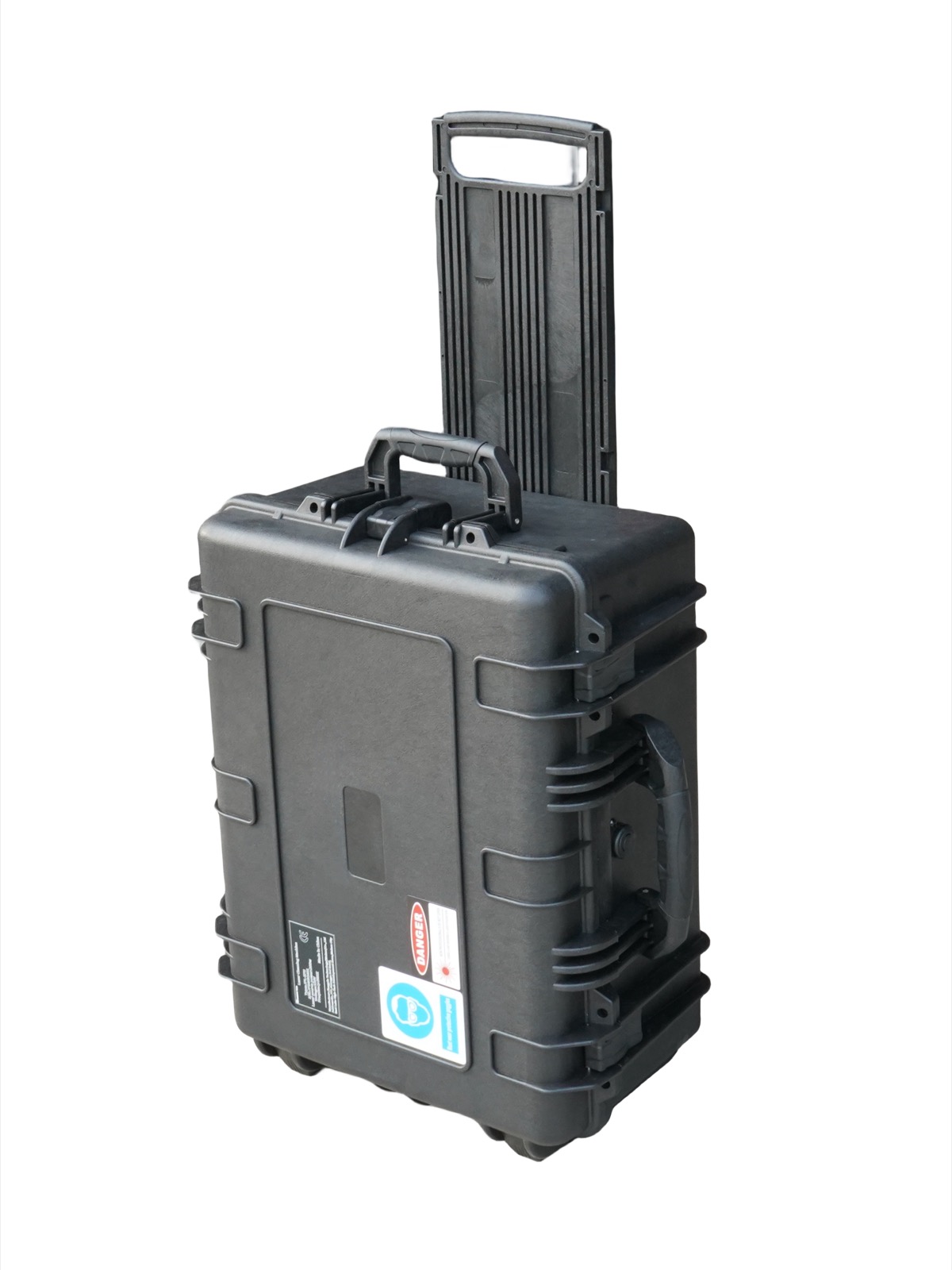

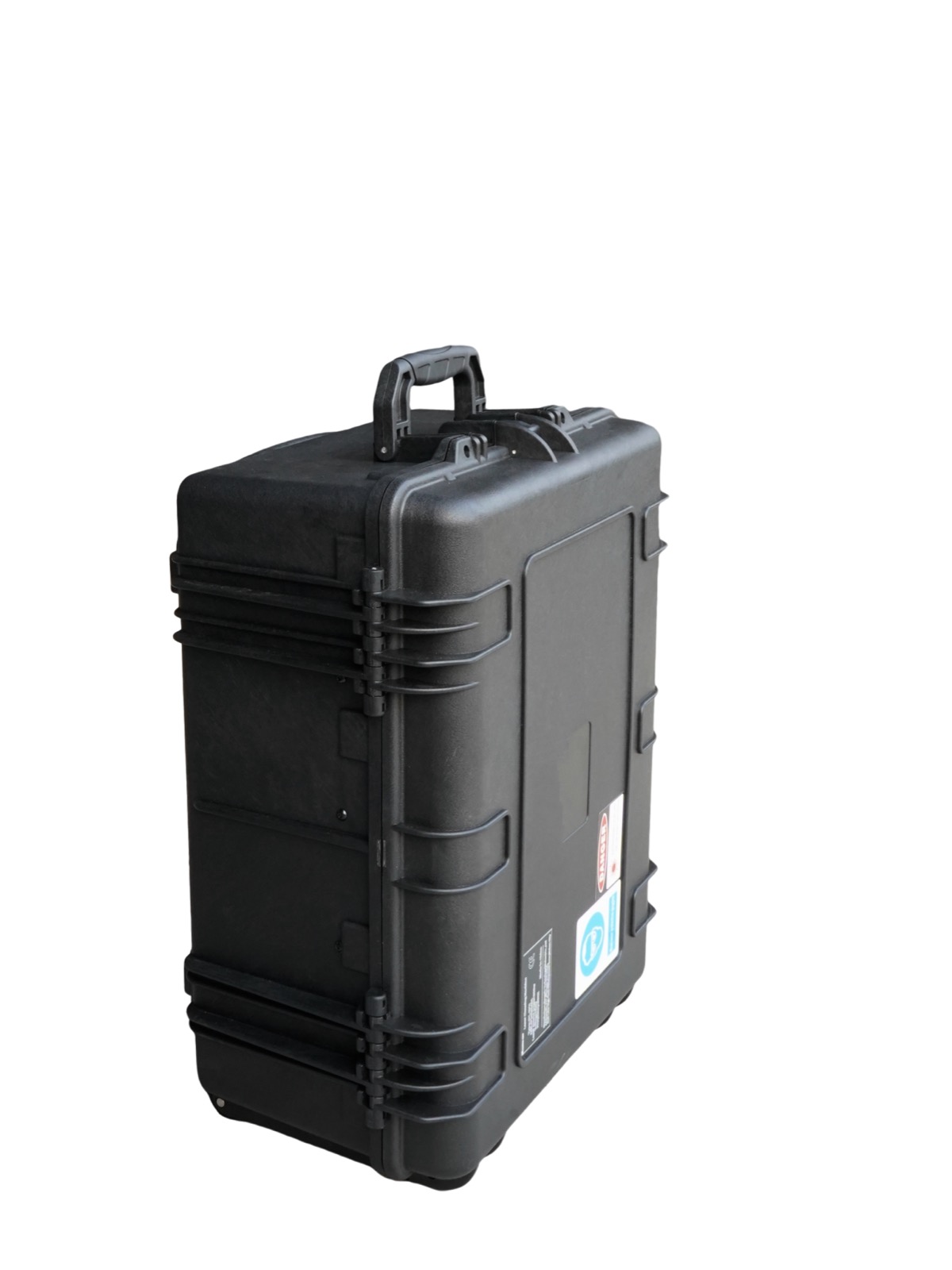

• Suitcase-type integrated design with wheels and telescopic handle — one person can transport and operate it
• Air-cooled laser source: no chiller, no water, minimal maintenance
• Handheld cleaning gun under 0.9 kg with a 5 m fiber cable
• Non-contact cleaning that removes surface contaminants without damaging the base material
• No chemicals and no consumables — no dust, no water, no secondary waste
• 9 scanning modes (linear, rectangular 1/2, circular, sine, helix, free, ring, rotate) with a scan range of 0–145 mm, continuously adjustable
• Built-in process database so proven parameters can be recalled instantly
• Field lens options F160 / F210 (standard) / F254 / F330 / F420 for different cleaning widths
• Can be mounted on a robot or manipulator for automated cleaning lines

Typical Applications

• Rust and corrosion removal on steel structures, pipes and weld seams

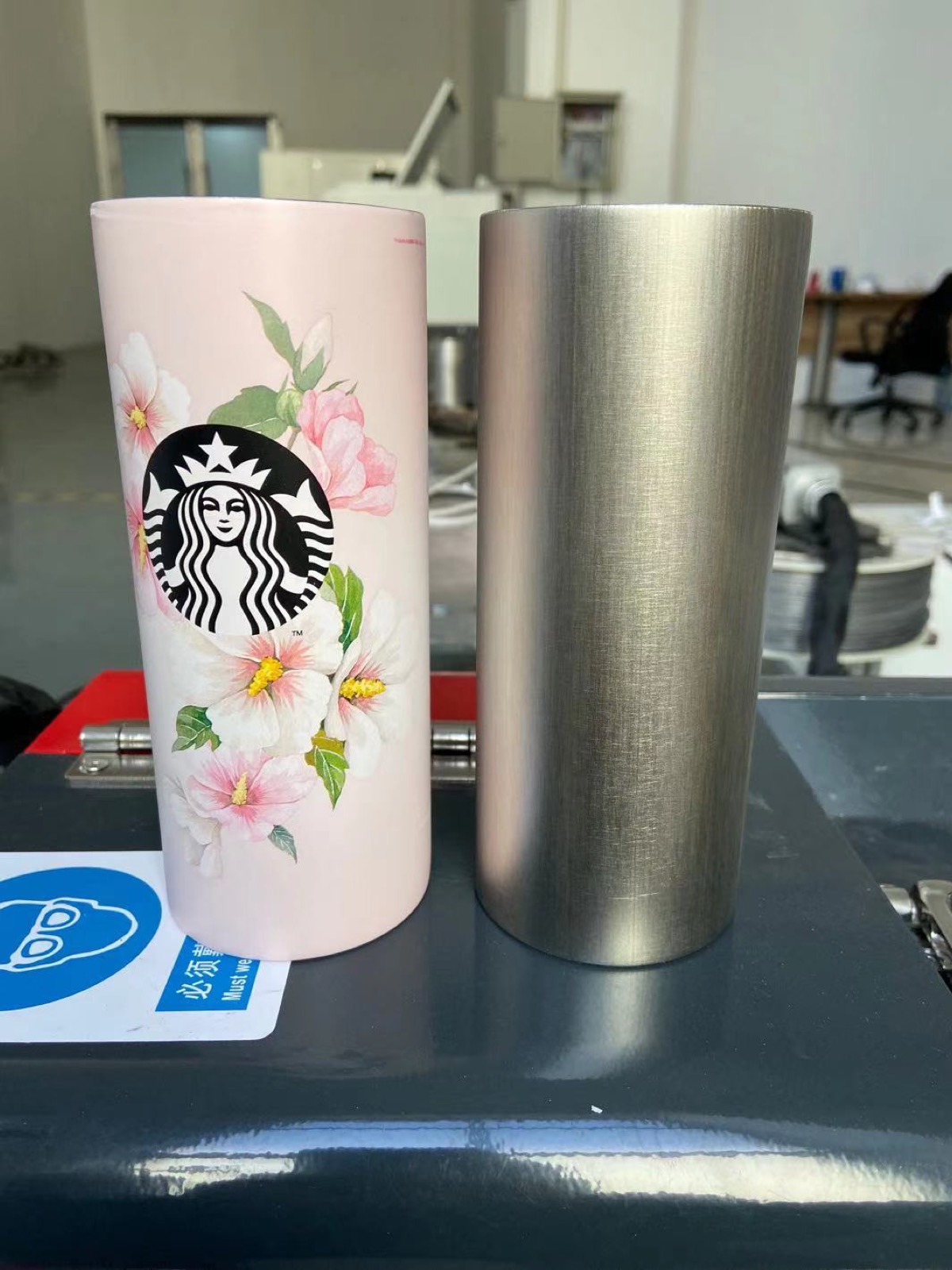

• Paint, primer and coating stripping without abrasive blasting

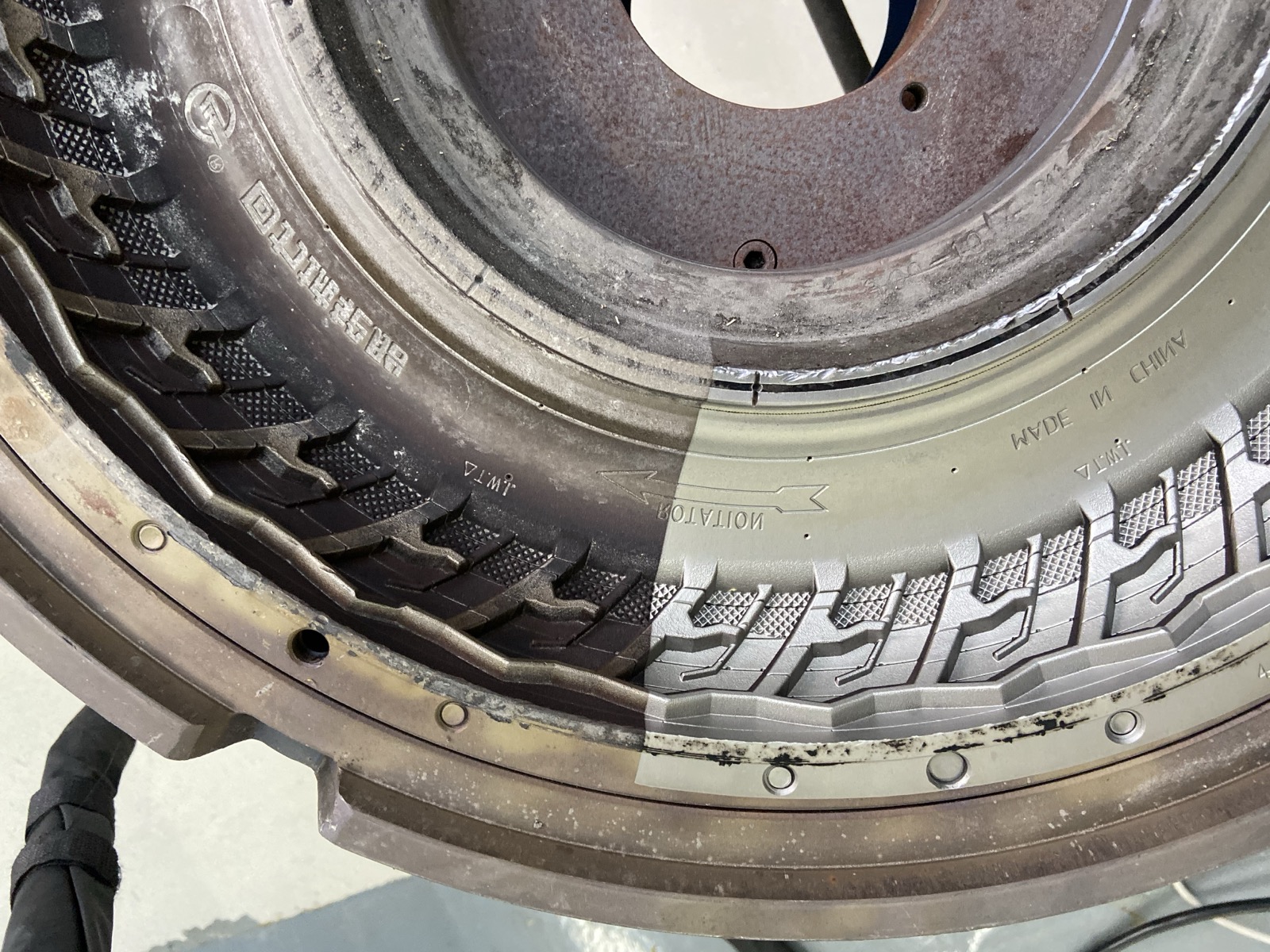

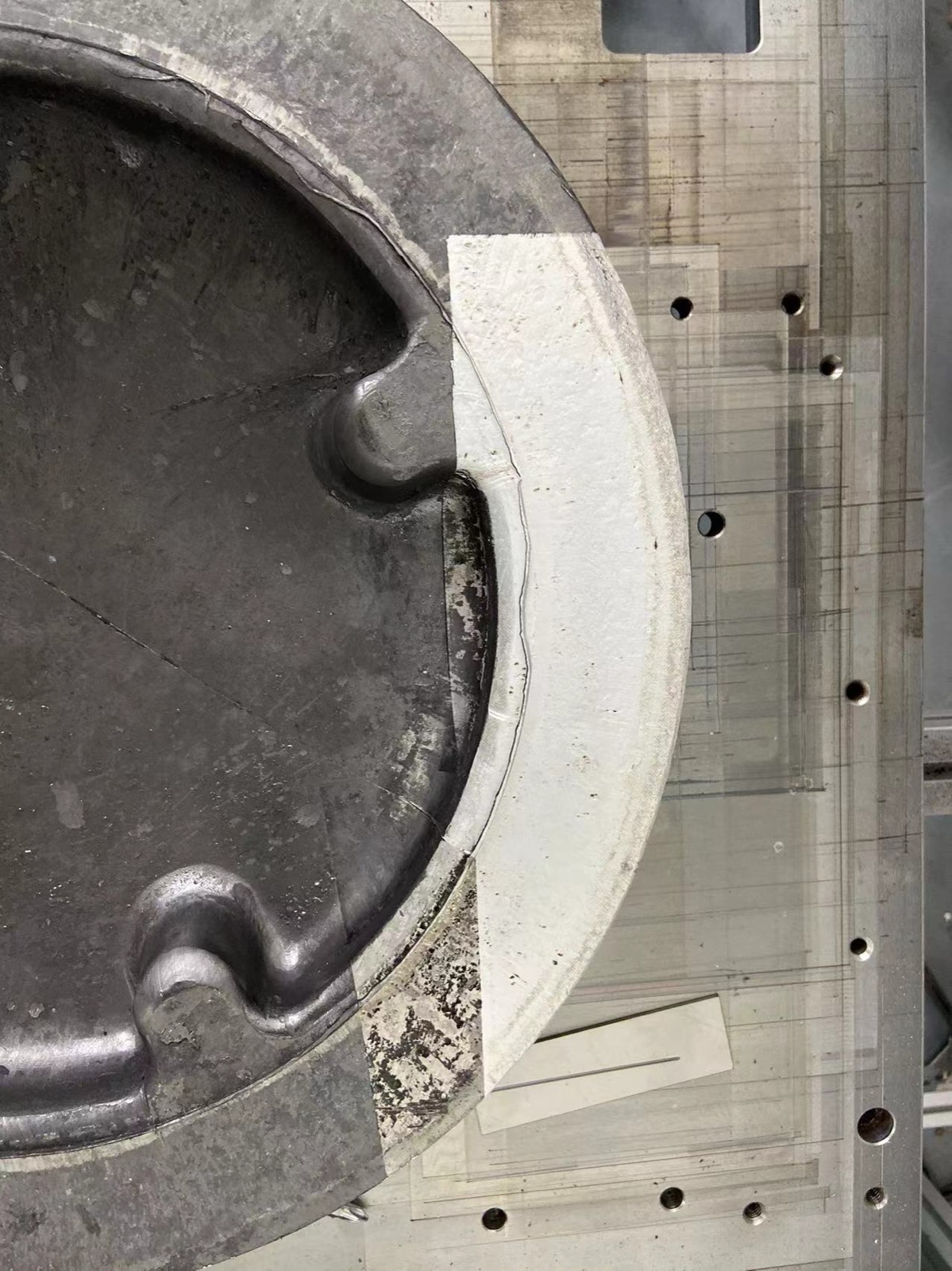

• Mold and die cleaning: rubber molds, tire molds, injection molds and tooling
• Pre-weld and post-weld cleaning of weld seams; oxide removal on stainless steel
• Oil, grease and carbon deposit removal on machine tools and automotive parts
• Restoration of ships, rail tracks, aerospace components and environmental equipment

Technical Specifications (200W model shown; 100W / 300W / 500W available)

Parameter	BV-SPR200P
Model	BV-SPR200P (100W / 300W / 500W optional)
Laser type	Pulsed fiber laser, 1064 / 1080 nm
Average output power	≥200 W
Power instability	<5%
Working mode	Pulse
Pulse width	13–500 ns
Maximum single pulse energy	2 mJ
Power adjustment range	0–100% (gradient adjustable)
Repetition frequency	1–3000 kHz (gradient adjustable)
Fiber length	5 m
Cooling mode	Air cooling
Scan range (L × W)	0–145 mm, continuously adjustable; 9 scanning modes
Scanning frequency	≥300 Hz
Field lens focal length	210 mm standard (160 / 254 / 330 / 420 mm optional)
Depth of focus	≈5 mm
Cleaning head weight	<0.9 kg (excluding optical head)
Supply voltage	Single-phase 220V ±10%, 50/60 Hz
Power consumption	≤1500 W
Machine size (L × W × H)	617 × 469 × 291 mm
Net weight	≈28 kg (packed ≈48.2 kg)
Operation	Handheld (robot mounting optional)

Standard Configuration

Mainframe BV-SPR200P · laser cleaning head BV-QCDXYP200 · built-in process database · laser safety glasses (SD-3) · 5 spare protective lenses (48×3) · lens cleaning kit

Warranty and Service

• One-year free warranty (human damage and broken fiber excluded)
• Free on-site installation and commissioning support, plus operator training
• Free technical consultation, process and software upgrades
• Lifetime maintenance service, spare parts charged at cost

Request a Price

Tell us your workpiece, contaminant and required cleaning width, and our engineers will recommend the right power (100W / 200W / 300W / 500W) and lens for your application. Email: liuxiaoliu53@gmail.com — or use our contact form.
