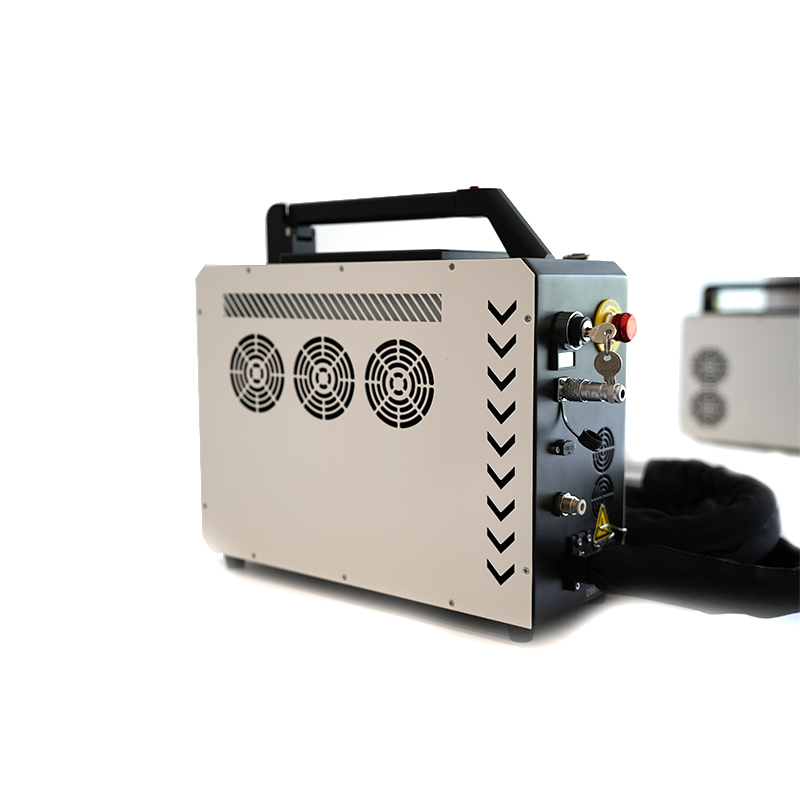

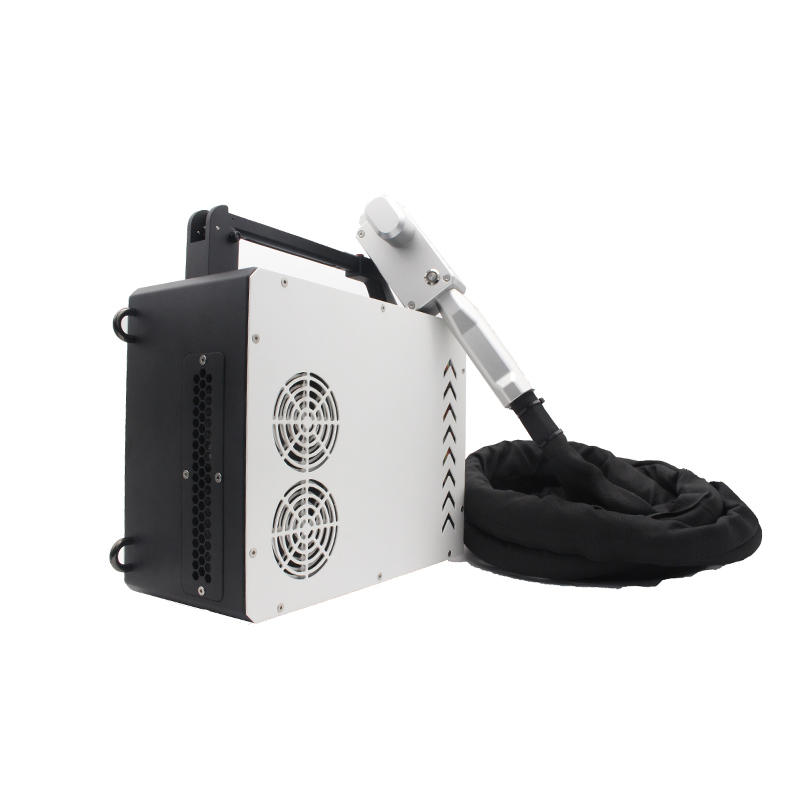

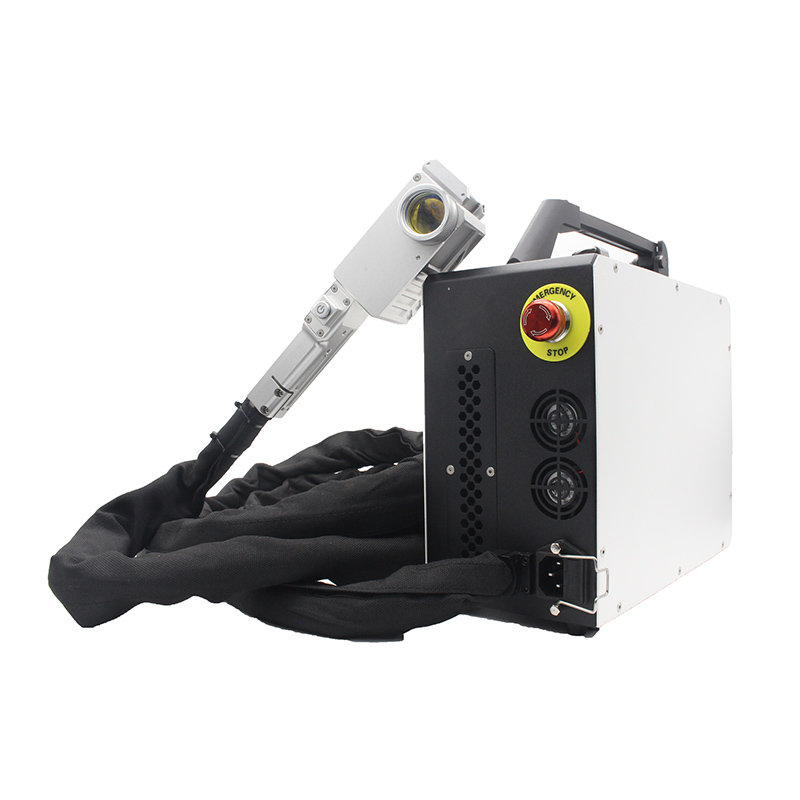

Portable Pulse Laser Cleaning Machine – 50W / 100W / 200W Air-Cooled

Highly efficient and portable. Compact size between A4 and A3 paper. Supports external lithium battery connection for strong mobility.
Compact mini laser head weighing only 700g. Comfortable for prolonged use, flexible and convenient.
Excellent performance data with high cleaning efficiency.
Stable system, easy to control. Service life up to 50,000 hours – cost-effective and efficient.

Chat on WhatsApp

Additional information

Laser Power	50W, 100W, 200W
Max pulse energy	1.1mJ, 1.6mJ, 1.5mJ
Pulse repetition rate	45-170kHz, 20-200kHz
Total weigth	8Kg, 10Kg, 15.5Kg

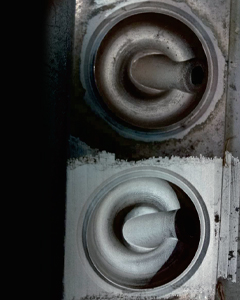

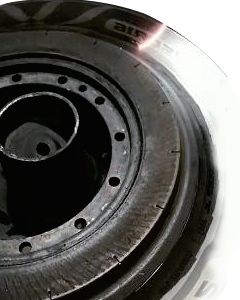

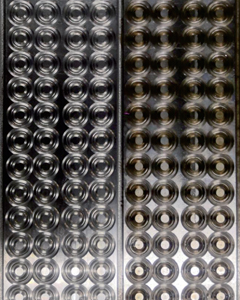

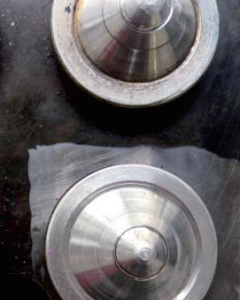

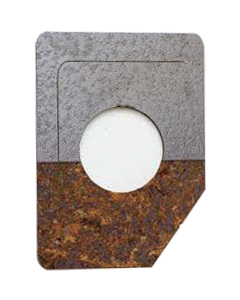

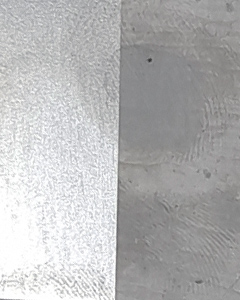

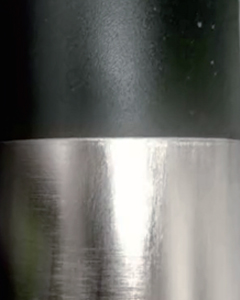

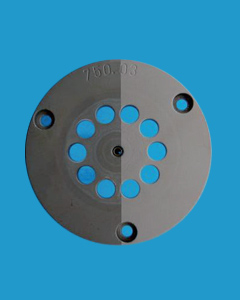

Applications	Mold cleaning · Electronics · Stone cleaning · Artifact restoration · Wood paint removal · Precision machinery.

This portable pulse laser cleanning machine integrates multiple innovative designs to solve real on-site cleaning pain points. Available in 50W, 100W and 200W power options, it adapts to light, medium and heavy-duty cleaning tasks.

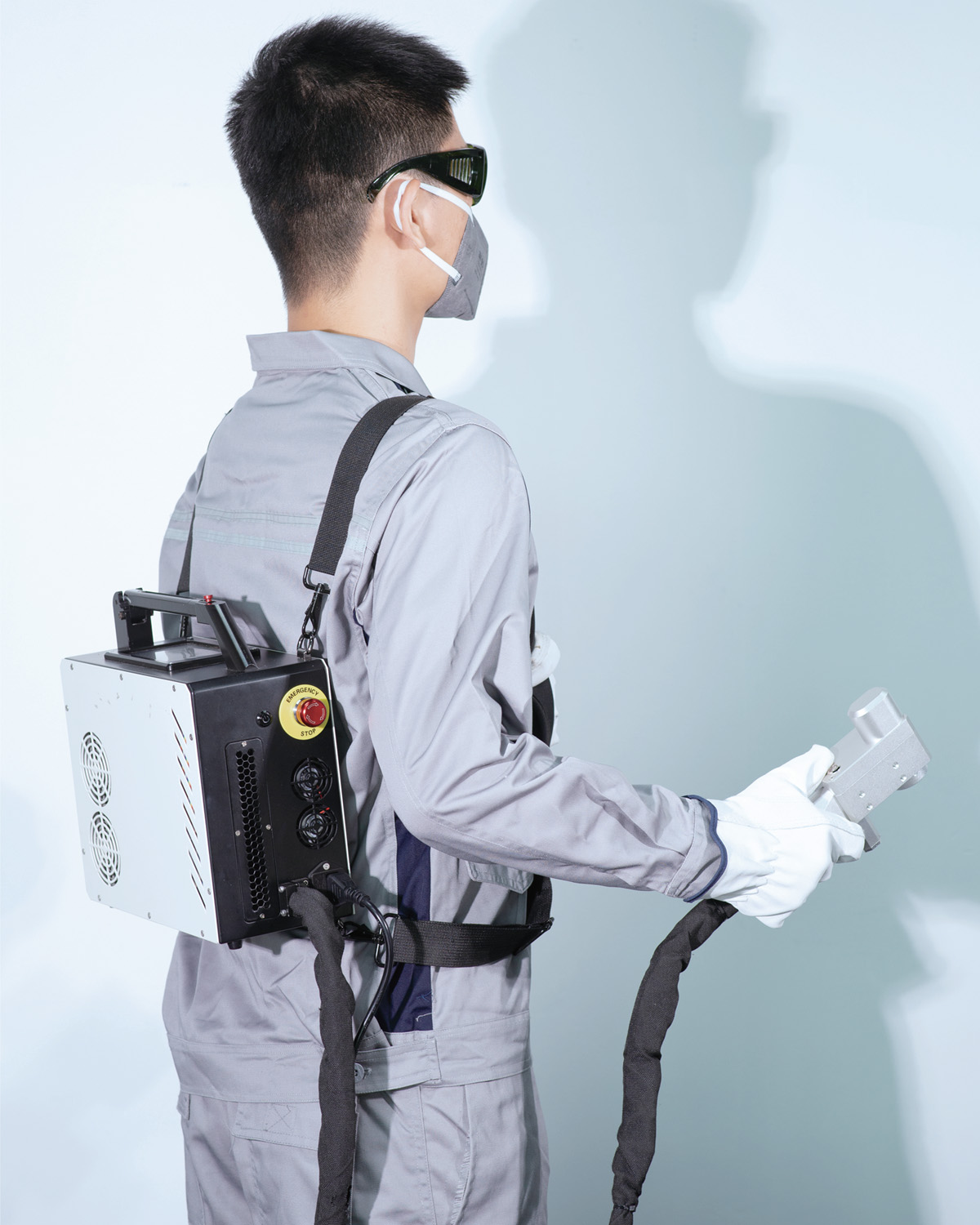

Shoulder Strap Buckle – Hands Free

The chassis is equipped with a strap buckle. The strap can be carried on the shoulder, and the hands are freed.

External battery – strong mobility

External battery provides strong mobility.

Hand-held cleaning – flexible & convenient

Hand-held cleaning with exclusive mini laser head. Durable, not tiring, flexible and convenient.

Excellent performance – high efficiency

Some parameters are stronger than 200W air-cooled laser cleaning machines, with high cleaning efficiency.

Stable system – 50,000h lifespan

The system is stable and easy to control, with a service life of up to 50,000 hours – cost-effective.

High precision – no substrate damage

High cleaning precision with nano-level control. No damage to the substrate.

Green – no secondary pollution

Green and environmentally friendly. No secondary pollution.

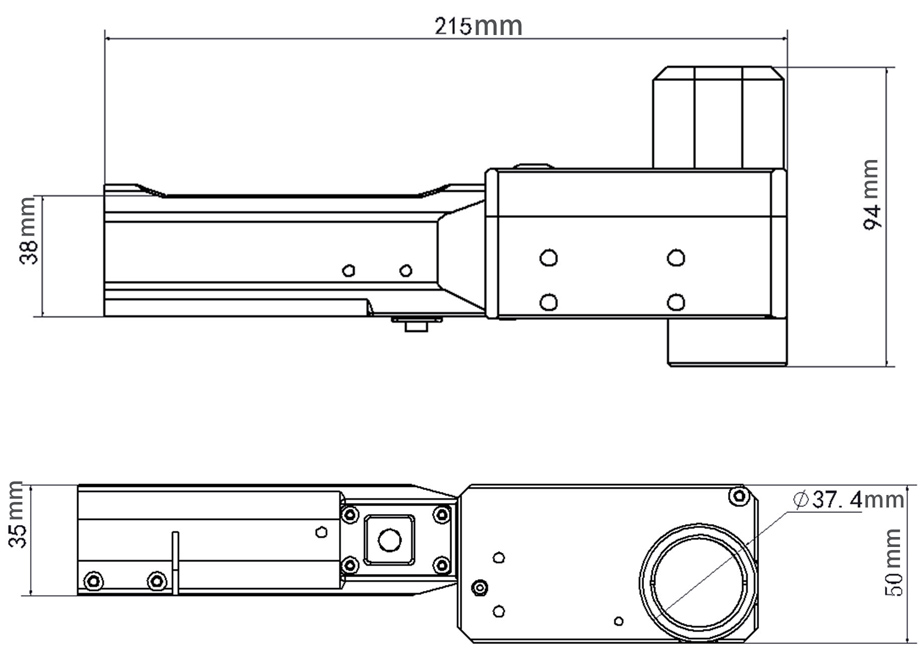

Fifth generation laser head

Product Parameters

Parameter
Max average power	50W	100W	200W
Power range	10-100%
Output central wavelength	1064nm
Bandwidth(nm)	5nm
Max pulse energy	1.1mJ	1.6mJ	1.5mJ
Pulse repetition rate	45-170kHz	20-200kHz	20-200kHz
Pulse width(ns)	100±10@45kHz	180±10@65kHz	200±10@65kHz
Beam quality(M2)	1.6	1.6	1.6
Fiber length	3m/5m/10m
Min bending radius	150mm	150mm	300mm
System power supply requirement	220	220	220
Power Consumption	350W	550W	˂ 800W
Working Temperature	10-40°C
Storage temperature	-10-(+)60°C	-10-(+)60°C	-20–(+)60°C
Relative humidity(%)	<80	<80	<70
System dimensions(LWH)	280220122mm	280380150mm	339450163mm
Total weight(Kg)	8Kg	10Kg	15.5kg
Laser head type	2D scanning
Laser safety classification	Class 4
