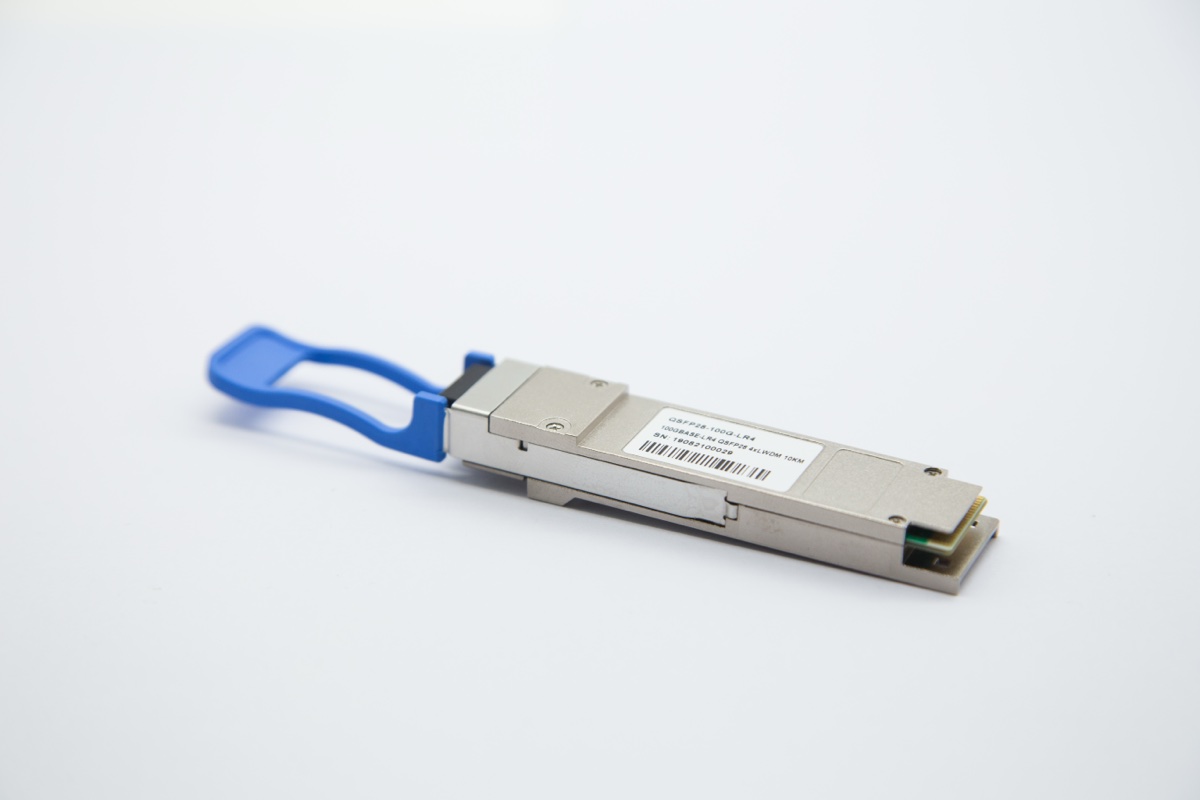

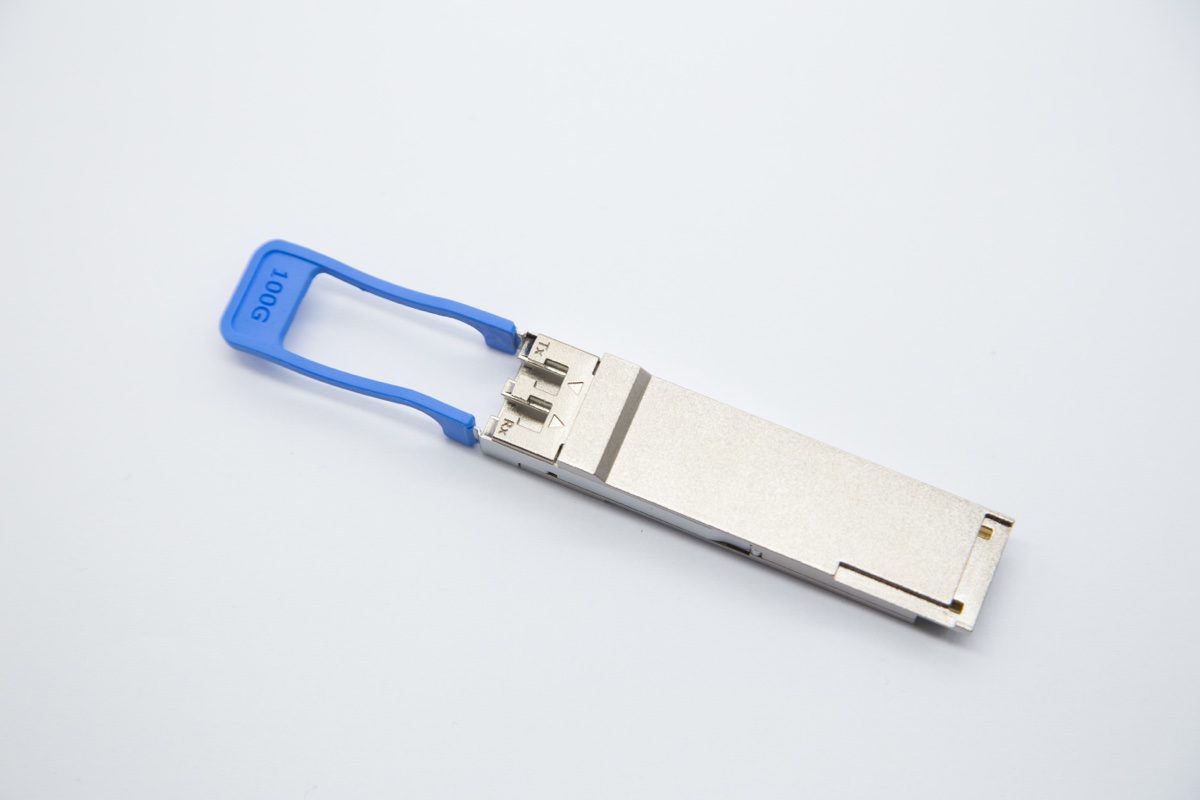

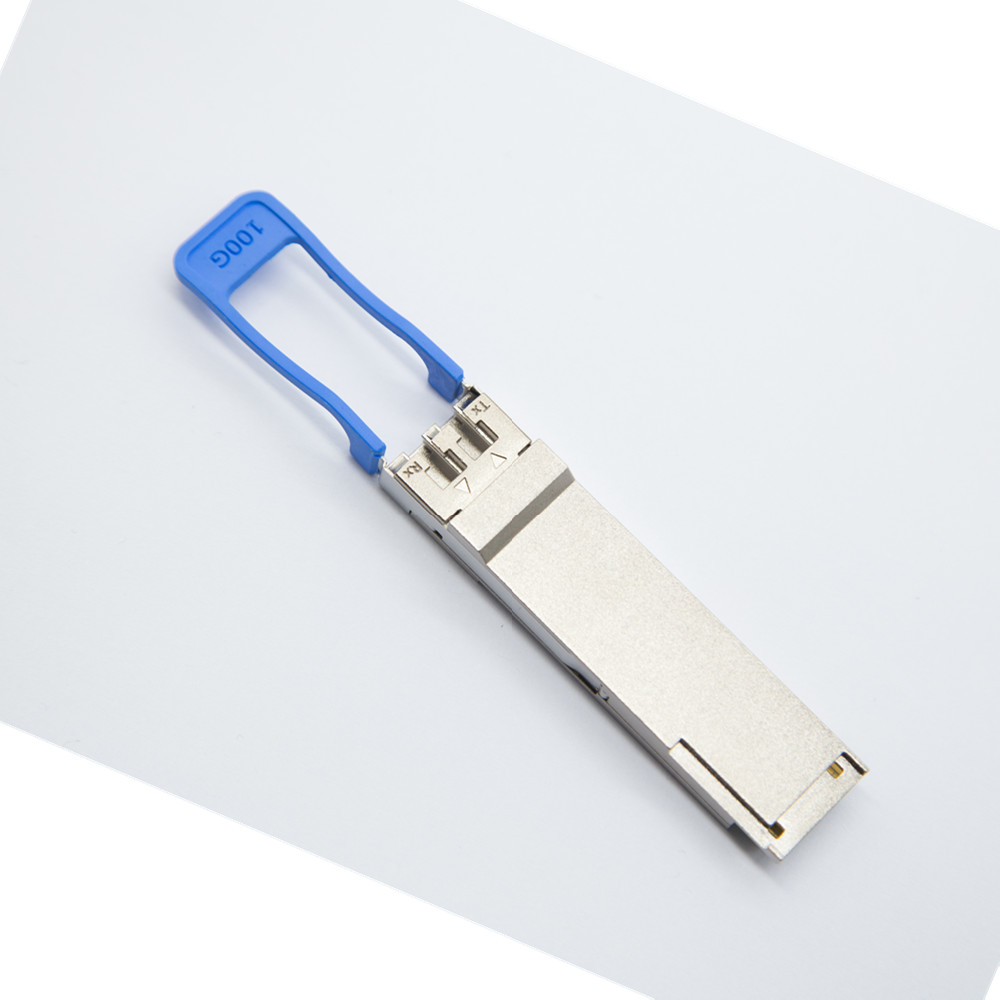

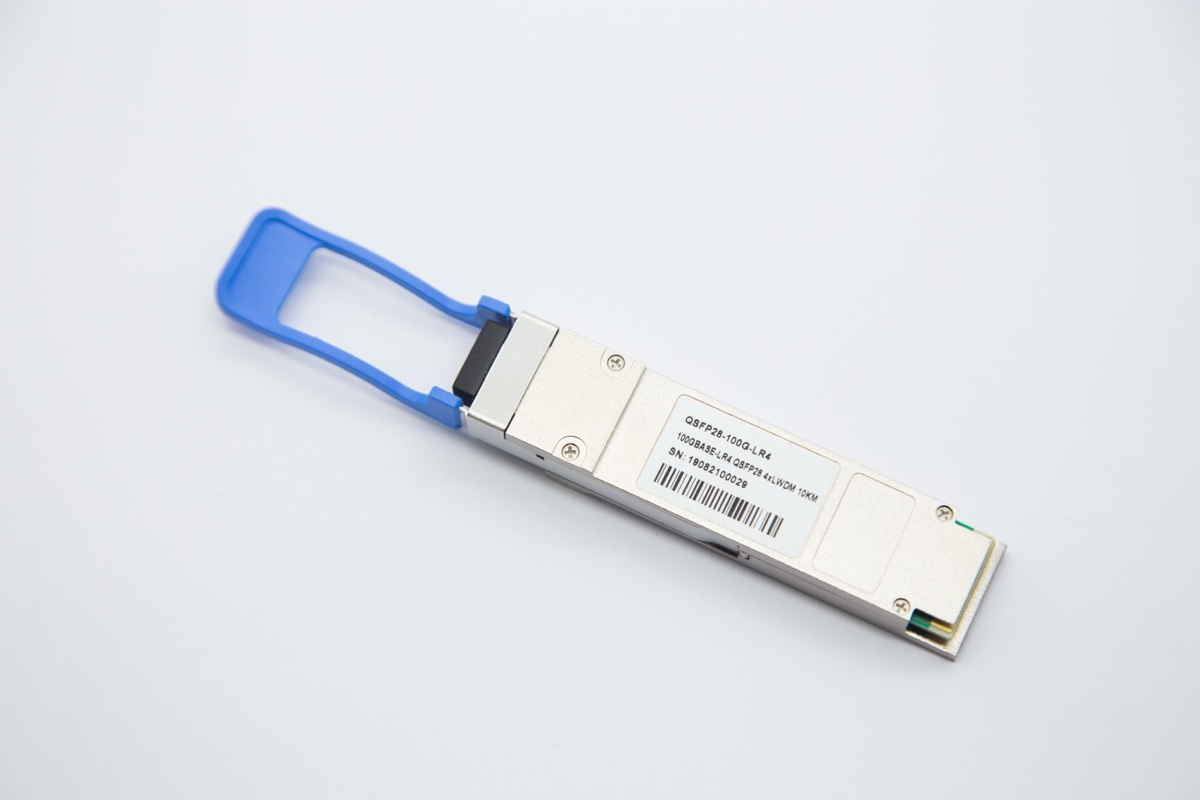

This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
| Weight | 0.045 kg |
|---|
100GBASE-LR4 QSFP28 4×LWDM 10km
| Part Number | QSFP28-100G-LR4 |
| Vendor Name | Rayoptek |
| Form Factor | QSFP28 |
| Wavelength | 1310nm |

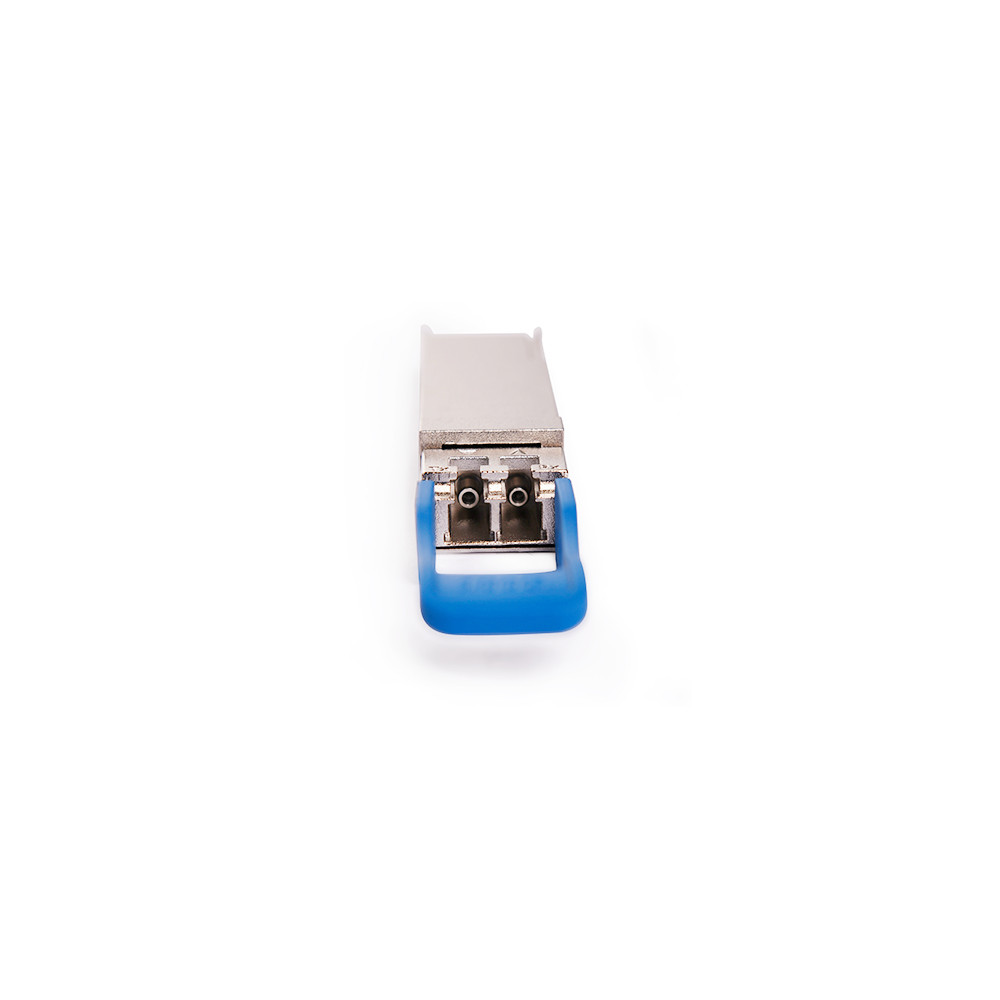

| Connector | LC Duplex |
| Data Rate | up to 104Gbps (4x26Gbps) |
| Reach | 10km |
| Cable Type | SMF |
| DDM/DOM | Supported |
| TX Power | 4.3~4.5dBm |
| Power Consumption | ≤4.5W |
| Receiver Type | PIN |
| Operating Temperature | 0 to 70°C |
| Receiver Sensitivity | <-8.6dBm |
| Extinction Ratio | >4dB |
| Host FEC | Supported |
| BER | 1E-12 (without FEC) |
| Warranty | 3 years |
| Protocols | IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636 |
For detailed electrical, optical, and mechanical specifications, download the official technical datasheet.
