One Main Unit + N Function Covers = N Machines
Featuring the innovative Full-Function Protective Cover Pro design, this machine allows you to switch between multiple functions simply by changing the cover. It solves the challenge of diverse marking needs while significantly reducing the high cost of traditional customized machines with a “one machine, one function” approach.

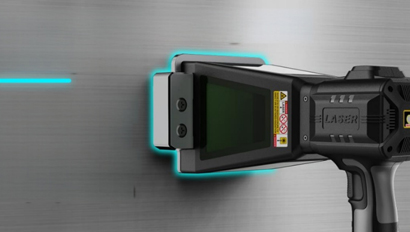

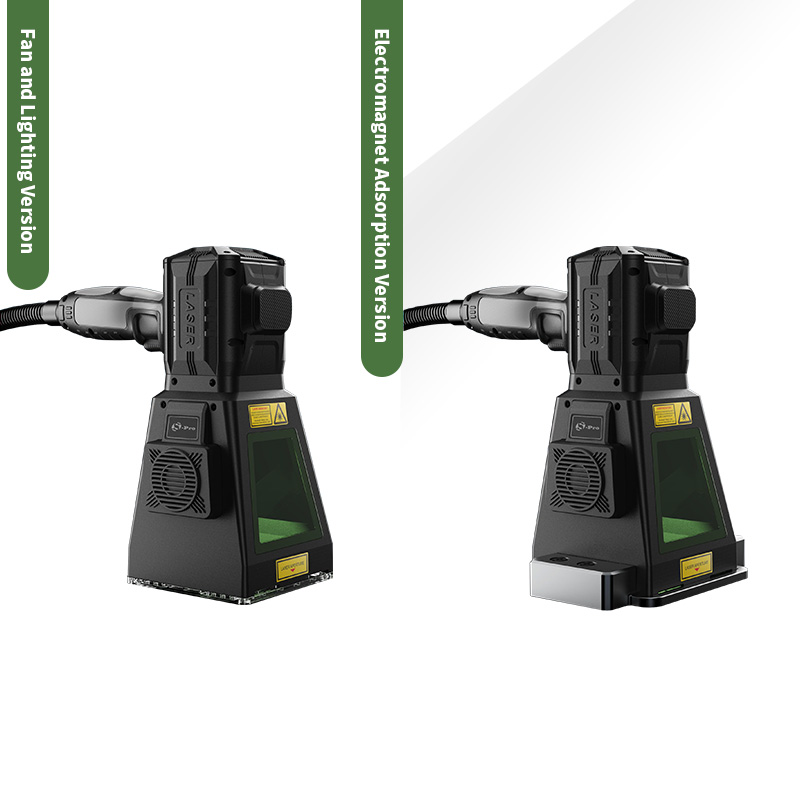

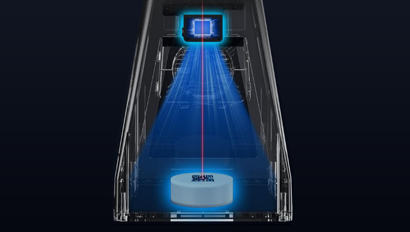

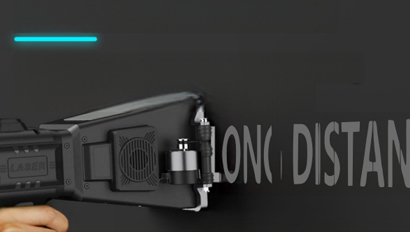

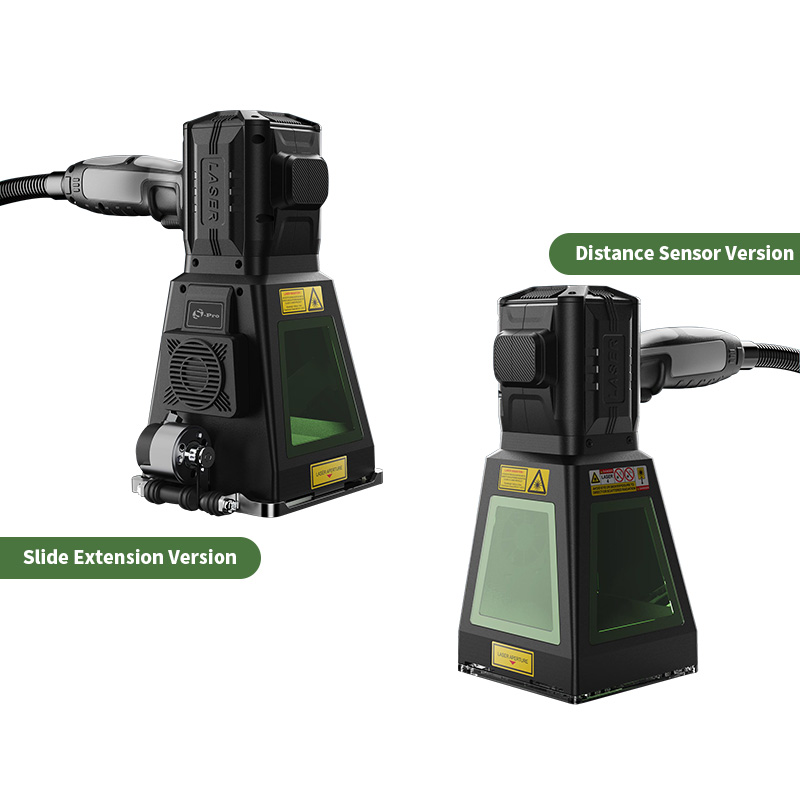

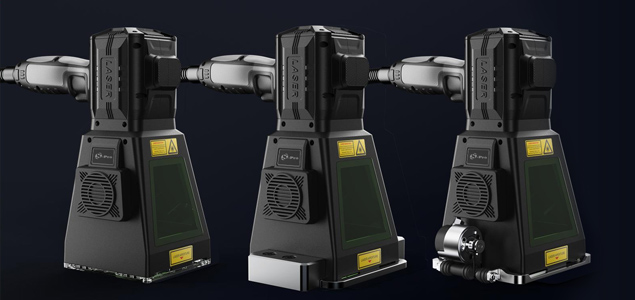

Four Expandable Function Covers Available: Long-Character Fan & Lighting Cover / Electromagnetic Fan & Lighting Cover / Powerful Fan & Lighting Cover / Distance Sensing Fan & Lighting Cover

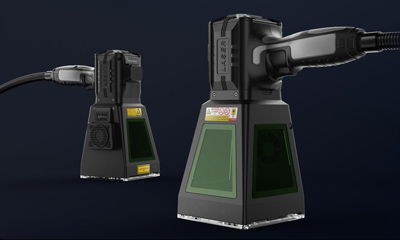

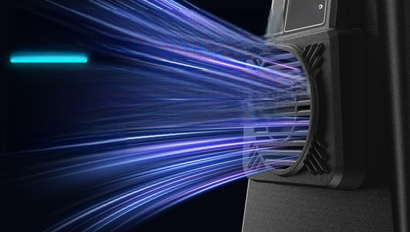

The full-function protective cover features a fully enclosed design with built-in lighting and a high-volume fan, safeguarding your marking process and delivering an entirely new marking experience
| Laser Power | 20W/30W/50W |
|---|---|
| Laser Wavelength | 1064nm |
| Working Area | 70x70mm / 100x100mm (optional) |
| Suitable Materials | Stainless steel, aluminum alloy, copper, iron, etc. |
| Machine Weight | 6.5kg (20W/30W) / 8kg（50W plug-in version） |

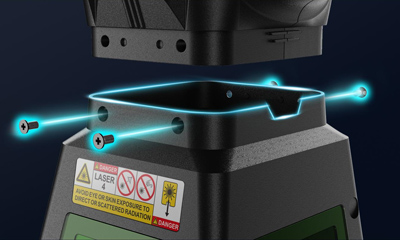

It can be installed with just four screws and is ready touse immediately.
Noise reduction and mute complies with multiple nationalstandards High security. Prevent laserleakage and safeguard usersafety

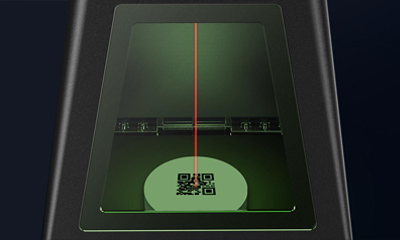

Built-in lighting and transparent window design, can be real-time observed marking process,understand the marking progress,improve the marking efficiency.
One cover with one function,easy installation, fast switching,flexible and multi-purpose.

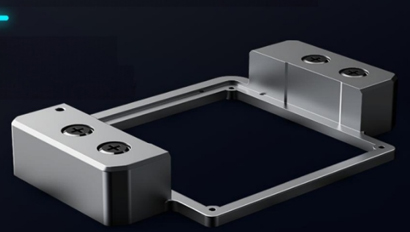

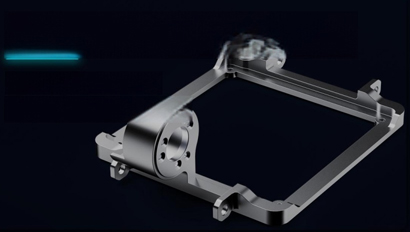

Quality materials, sturdy and durable
| Output power） | 20w / 30w / 50w |
| Marking range） | 70x70MM / 100X100MM(Optional) |
| Laser wavelength | 1064mm |
| Focusing lens | 130mm |
| Marking speed | ≤7000mm/s |
| Operating system | Linux system |
| Marking line type | Lattice and Vector |
| Line width | 0.03mm |
| Repeated positioning accuracy | 0.01mm |
| Locate mode | Red light positioning and focusing |
| Document format | BMP、DXF、HPGL、JPEG、PLT |
| Bar code type | CODE39、CODE128、CODE126、QR |
| Power supply | 110V/220V AC,Lithium(216wh) |
| Overall power consumption | 145-250W |
| Machine operating temperature | 0-40° |
