The SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| Weight | 0.024 kg |
|---|

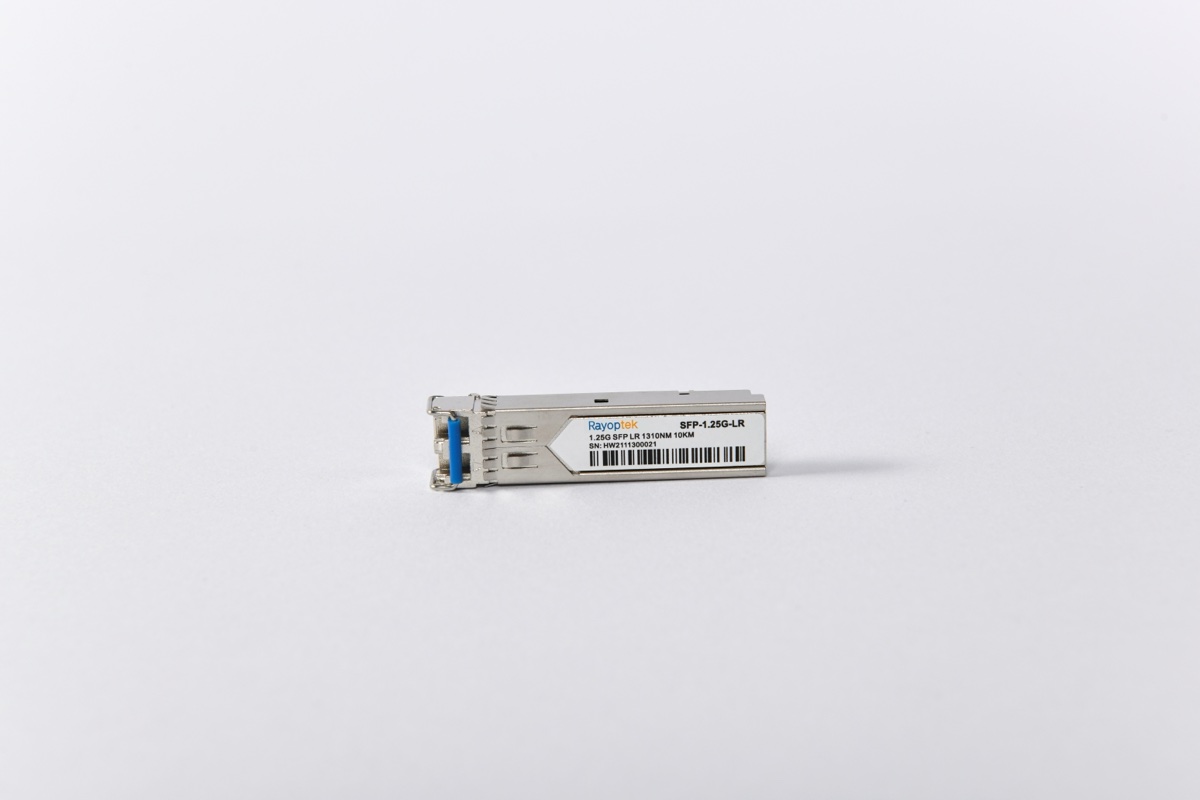

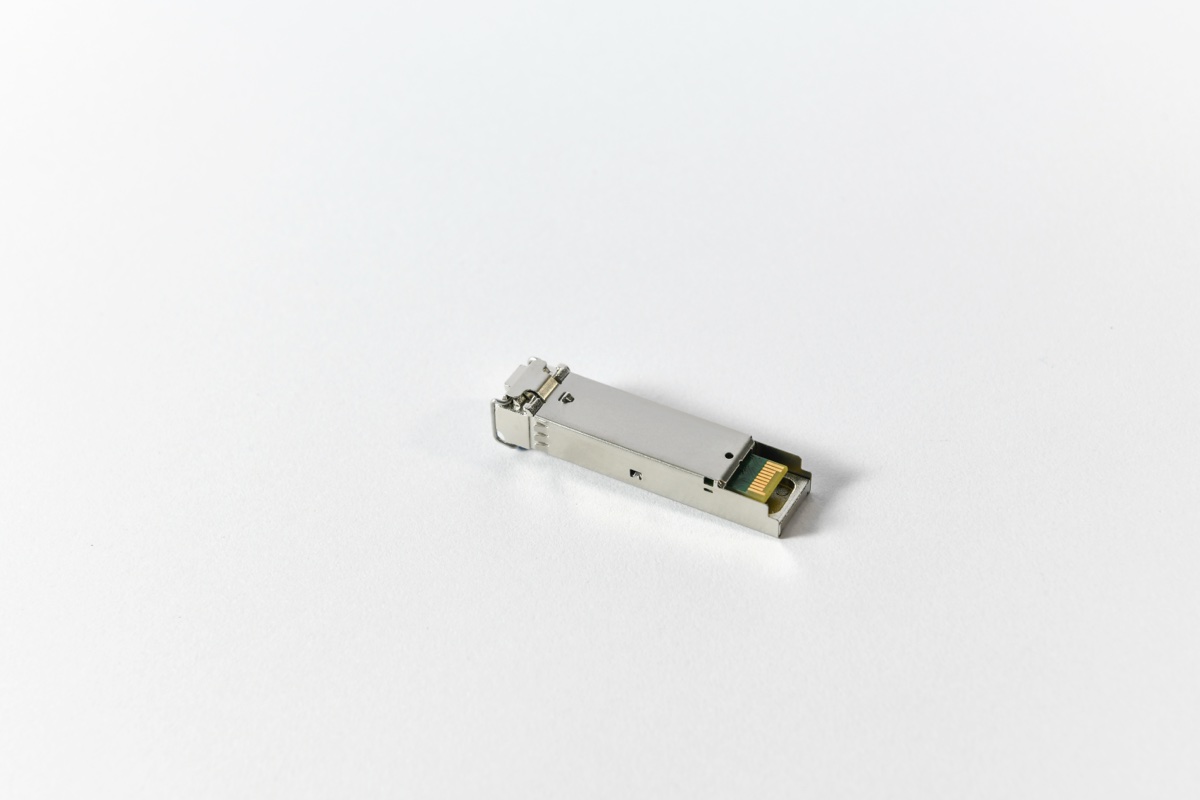

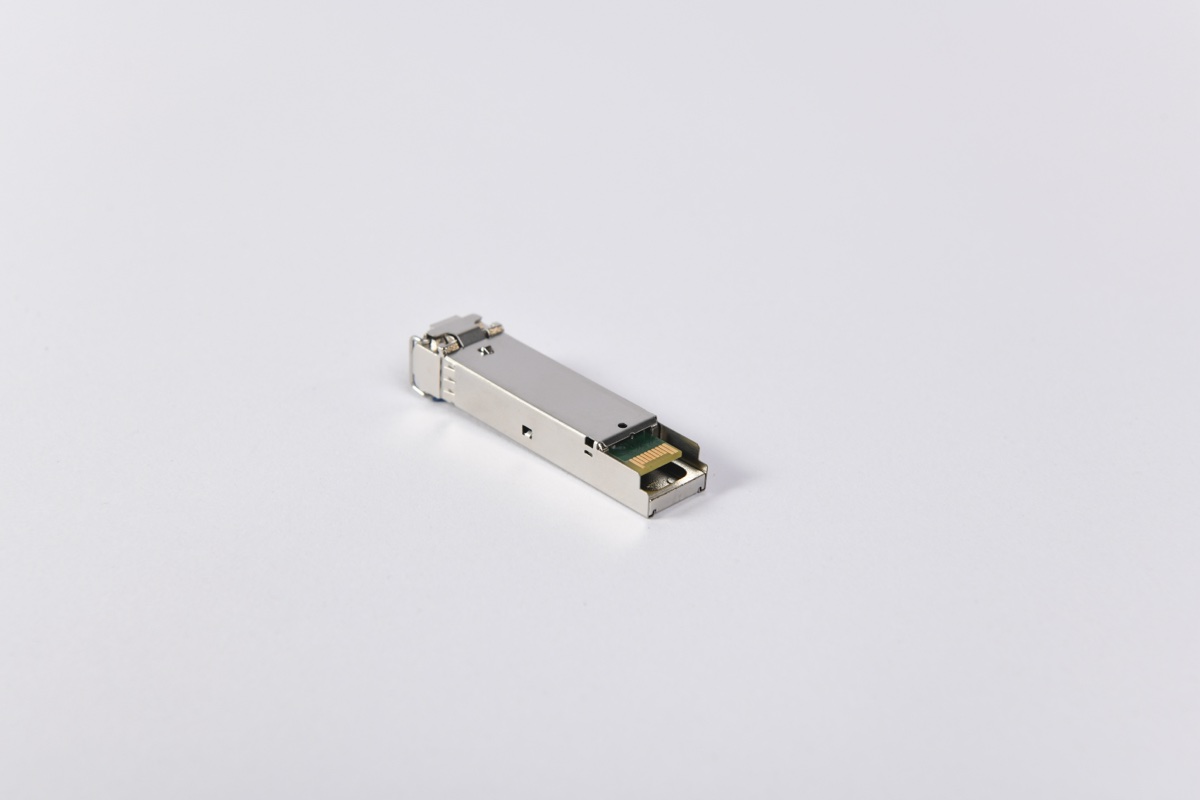

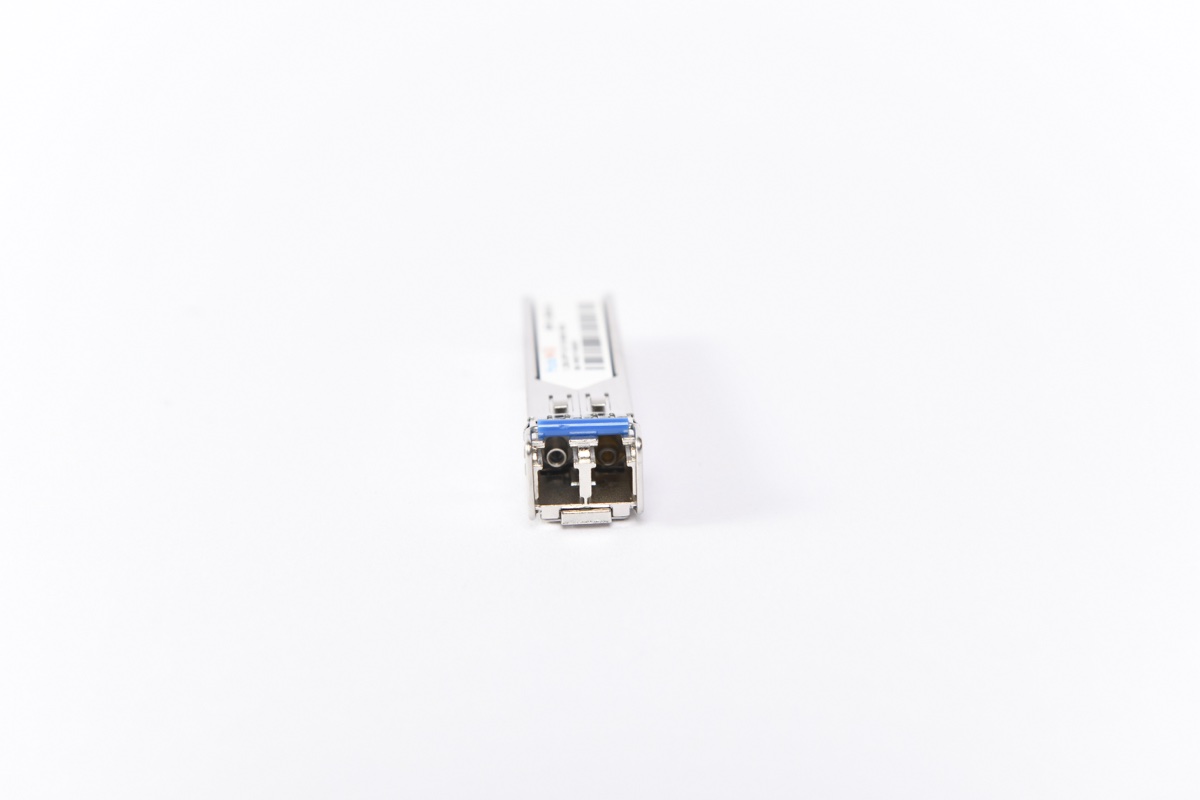

1.25G SFP LR 1310nm 10km SMF DOM LC Optical Transceiver
| Part Number | SFP-1.25G-LR |
| Vendor Name | Rayoptek |
| Form Factor | SFP |
| Wavelength | 1310nm |
| Connector | LC Duplex |
| Transimitter Type | FP |
| Data Rate | 1.25Gbps |
| Reach | 10km |
| Cable Type | SMF |
| DDM/DOM | Supported |
| TX Power | -9~-3dBm |
| Receiver Sensitivity | <-24dBm |
| Power Consumption | <1W |
| Receiver Overload | 3dBm |
| Receiver Type | PIN |
| Operating Temperature | 0 to 70°C |
| Extinction Ratio | >8dB |
| Host FEC | Supported |
| BER | 1E-12 |
| Warranty | 3 years |
| Protocols | IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
For detailed electrical, optical, and mechanical specifications, download the official technical datasheet.
