Precision 5-Axis Laser Welding Machine for Battery Production

Precision 5-Axis Laser Welding Machine for Battery Production - Image 2

Precision 5-Axis Laser Welding Machine for Battery Production - Image 3

Precision 5-Axis Laser Welding Machine for Battery Production

Equipped with a CCD monitoring system and advanced control software, the fiber laser welder makes accurate positioning, auto-focuses on the welding parts, and produces high-tensile tight seams with top visual quality. With fixtures and rotating devices, you gain a boosted welding efficiency by quickly welding similar products in large quantities and with high consistency.

Additional information

Output Power	1000W, 2000W, 3000W, 6000W
Power Consumption	≤14KW
Suitable Material	Pure aluminum, carbon steel, stainless steel, brass, etc
Power Supply	220V ± 10%, 380V ± 10%/50/60 Hz AC
Cooling Type	Water cooling
Work Size (X,Y,Z)	600mm300mm300mm (Customizable)
Fiber Cable Length	10m
HD CCD	Support

Key Features of the Automatic Platform Fiber Laser Welding Machine

It get more design freedom to create various seam shapes.
X, Y, Z electric three-axis stroke 400*300*300, it can reach repeat positioning accuracy ±0.05.
Optional laser generator, such as YAG, QCW high-speed splitter, fiber laser, semiconductor, etc.
Exclusive models can be customized according to customer needs, and two rotating shafts can be added.

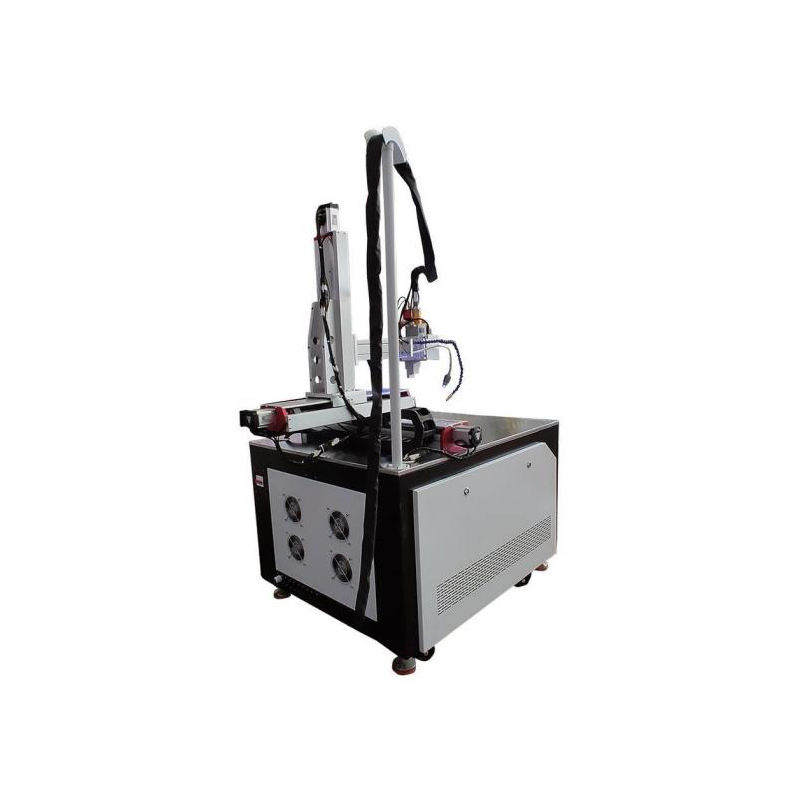

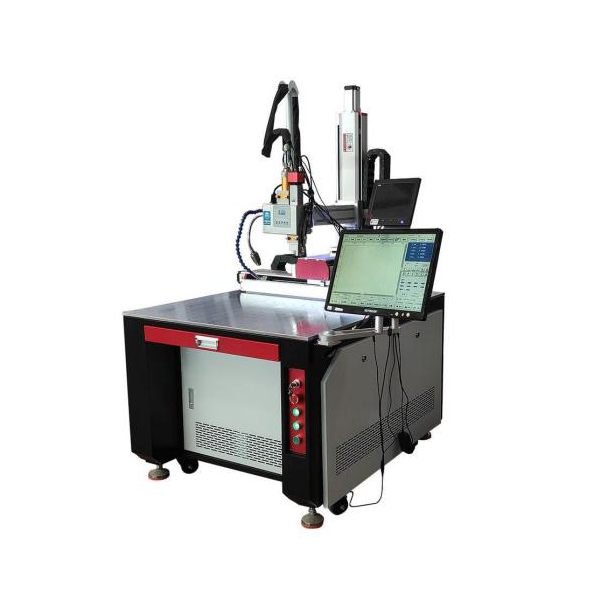

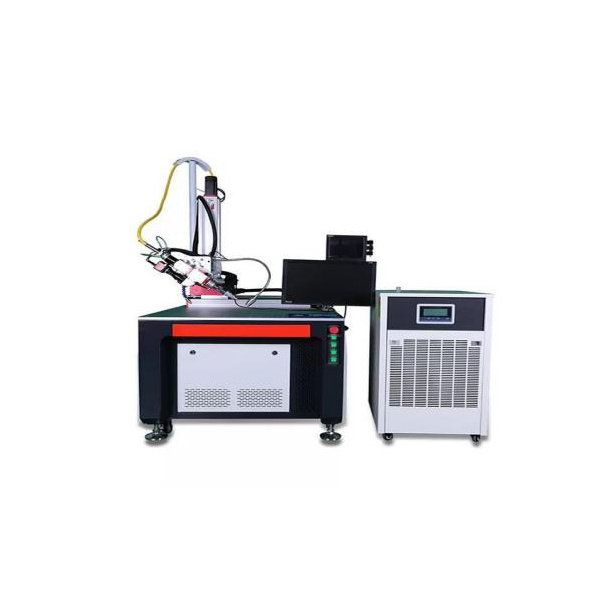

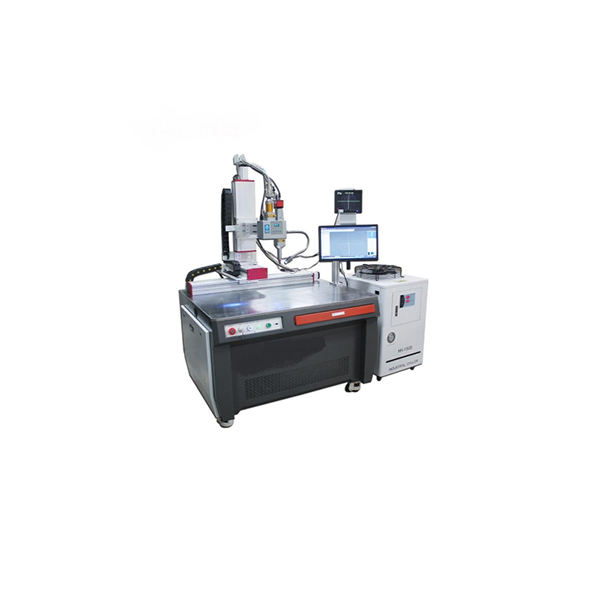

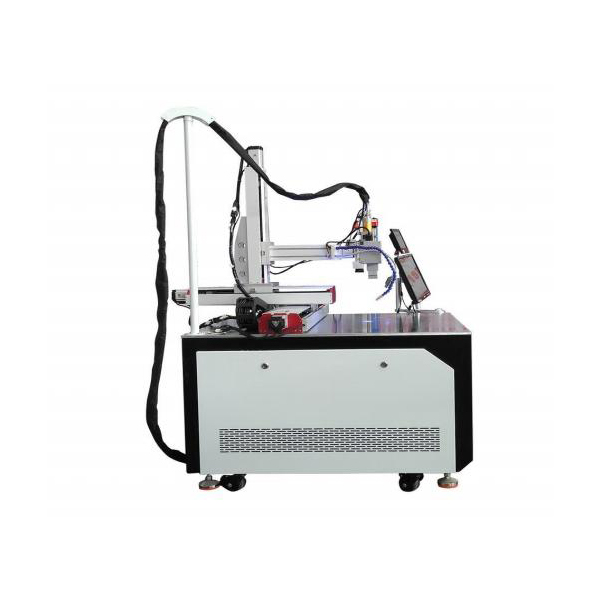

Platform Welding Machine Image Gallery

Laser

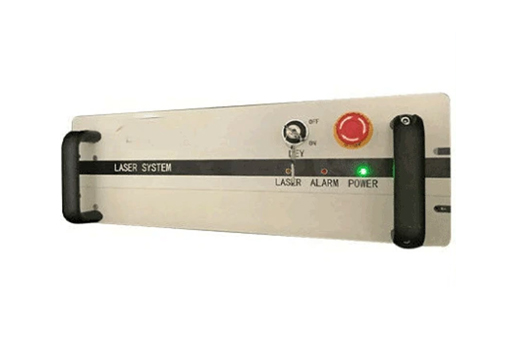

Brand laser, stable performance, higher photoelectric conversion rate, andlonger service life.

Water cooling machine

Industrial grade water coolers provide good protection for internal components of the equipment, greatly improving its service life.

CCD monitoring system

Enlarge the product, accurately locate it,facilitate observation of the surface forming quality of the weld seam, and ensure welding quality.

Welding system

User friendly operation software, easy to learn, users can easily edit welding trajectories such as points, lines,arrays, etc.

Longmen Gantry Welding System

Our advanced Longmen Gantry Welding System is engineered for high-performance, large-scale manufacturing of lithium battery packs. Designed to maximize productivity and flexibility, it is the ideal solution for modern energy storage and electric vehicle production lines.

The Galvanometer Welding Joint

Using a high-speed galvanometer to scan the welding head, the light spot is fine, the accuracy is high, the welding surface is smoother, and it is compatible with various welding modes of power battery packs.

Platform Welding Parameter Table

Model	BV-MAW1000	BV-MAW1500	BV-MAW2000	BV-MAW3000
Average Output Power	1000W	1500W	2000W	3000W
Power Consumption	≤3000W	≤4500W	≤6000W	≤9000W
Depth of Fusion (SS, 1m/min)	2.68mm	3.59mm	4.57mm	6.87mm
Depth of Fusion (CS, 1m/min)	2.06mm	2.77mm	3.59mm	4.79mm
Depth of Fusion (AL, 1m/min)	2mm	3mm	4mm	4mm
Depth of Fusion (Cu, 1m/min)	0.3mm	0.4mm	0.5mm	1mm
Suitable Material	Pure aluminum, carbon steel, stainless steel, brass, etc
Power Supply	220V ± 10%，380V ± 10%/50/60 Hz AC
Argon or Nitrogen Protection(customer provided)	15L/min
Laser Source	Raycus( JPT, Max, IPG optional)
Cooling Type	Water cooling
Water Chiller	S&A brand
Work Size	500*300mm
Control System	Earain
Motor	Leadshine servo motor
Welding Head	Qilin( Double swing motor)
Fiber Cable Length	10m
HD CCD	Support
Package Size	12385125cm
Package Weight	480KG

Product Application

It is applied in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automobile manufacturing, hardware products, battery industry, bathroom industry, medical equipment and other industries. It is used for off-line / on-line welding of mass production enterprises in electronics, communication, hardware and other industries. It applies to high-efficiency laser spot welding and seal welding of mobile phone shielding cover, metal mobile phone shell, metal capacitor shell, hard disk in computer, micro-motor, sensor, metal shielding net, shaving blade and other types of electronic products.
