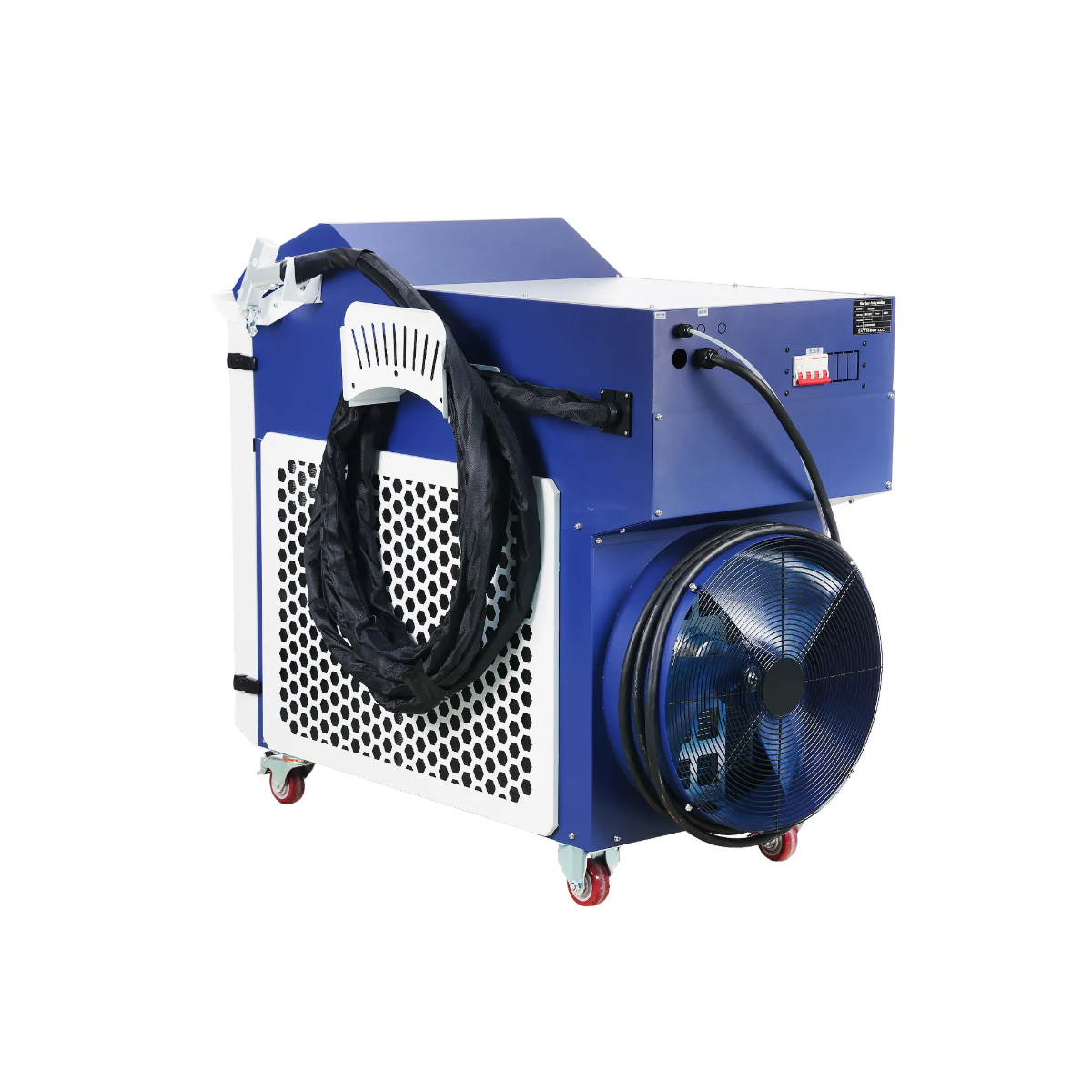

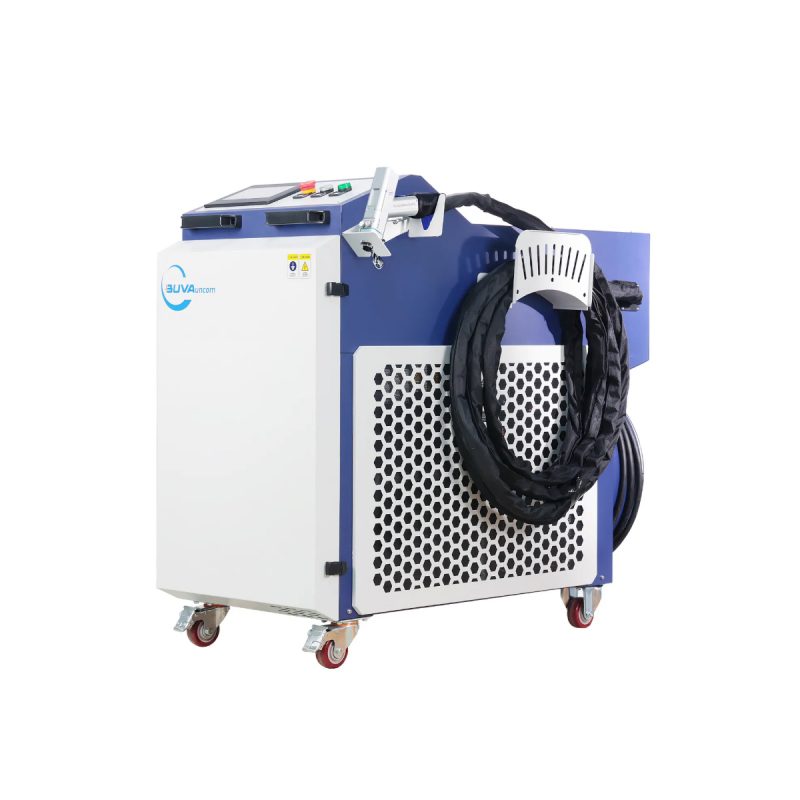

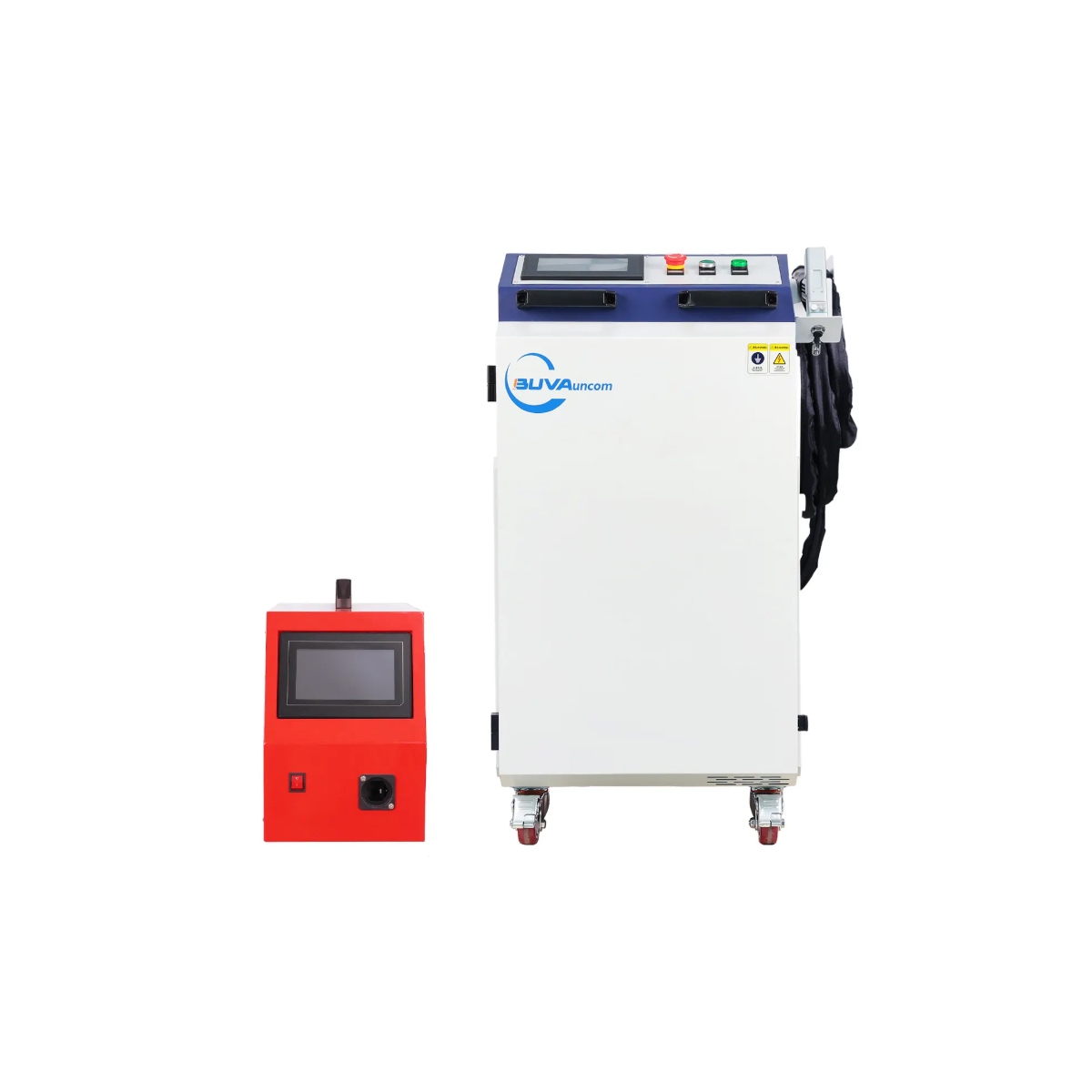

This advanced system integrates fiber laser technology, handheld welding, and water cooling to deliver welding, non-contact cleaning, and cutting in a single machine. Featuring multi-layer safety protection, real-time alarms, and auto-shutdown functions, it ensures stable, efficient, and safe operation for diverse metal processing applications.
| Laser Power | 2500W, 3000W |
|---|---|
| Input Voltage | 380±10% V AC,50/60Hz |
| Laser output mode | Continuous or modulate |
| Scan width-weld | 0~6mm/SUP21T（0~8mm/SUP23T optional） |

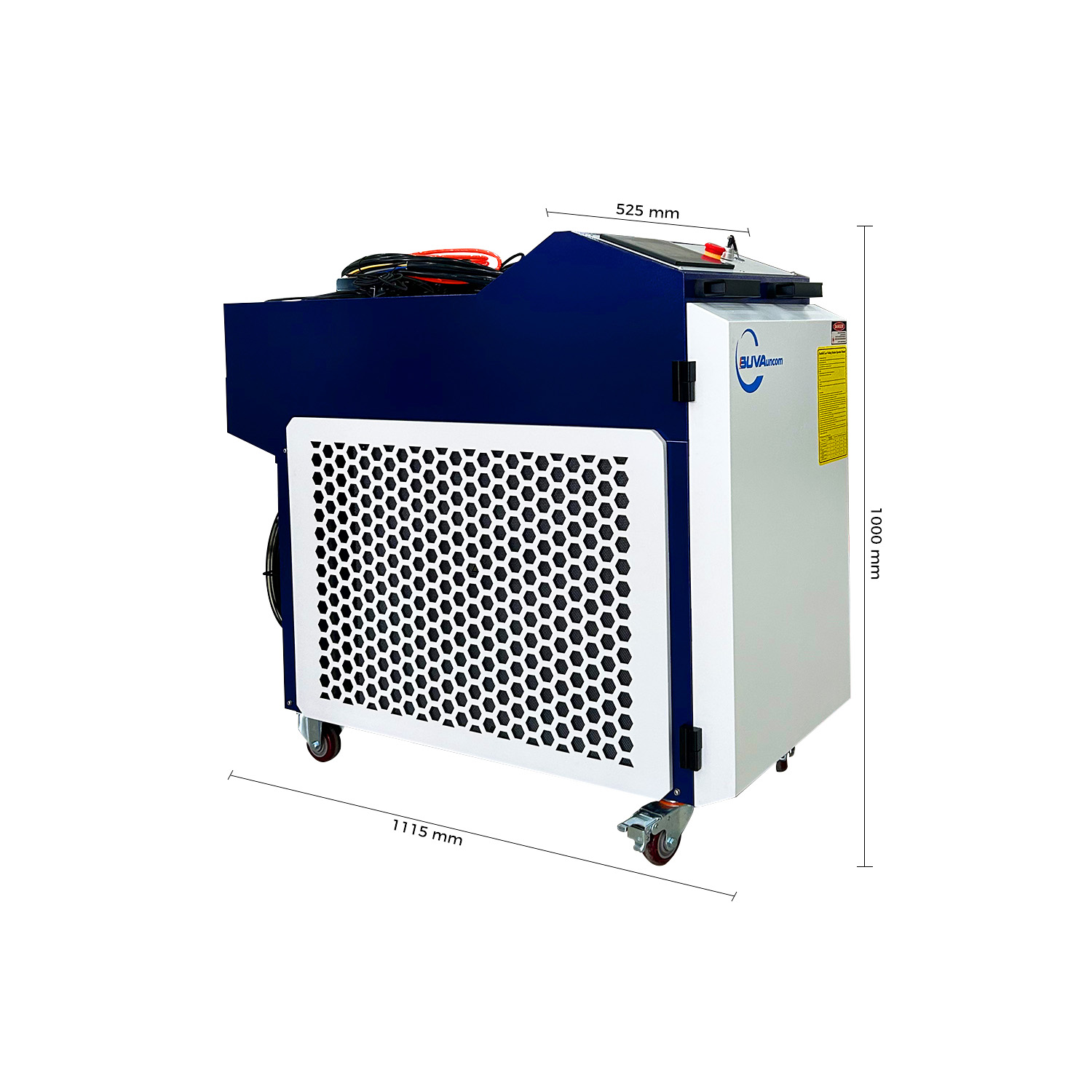

| Packing Dimension | 1640*740*1320(mm) |
Model Series: BUVA-2500W / 3000W
Wire Selection :
Safety :
Fill coolant to the marked water level line (avoid overfilling or underfilling); use distilled or deionized water to prevent mineral deposits from clogging the water channels. When ambient temperature falls below 10°C, antifreeze or anhydrous ethanol must be added.
The Hanli water chiller is typically equipped with temperature display - maintain water temperature around 20°C, with 22°C being optimal. Never start the welder without water circulation, as this will burn out the welding torch or damage equipment.
First turn off the welding machine, then allow the water chiller to continue operating for 1-2 minutes before powering down to ensure proper cooling of the welding torch.

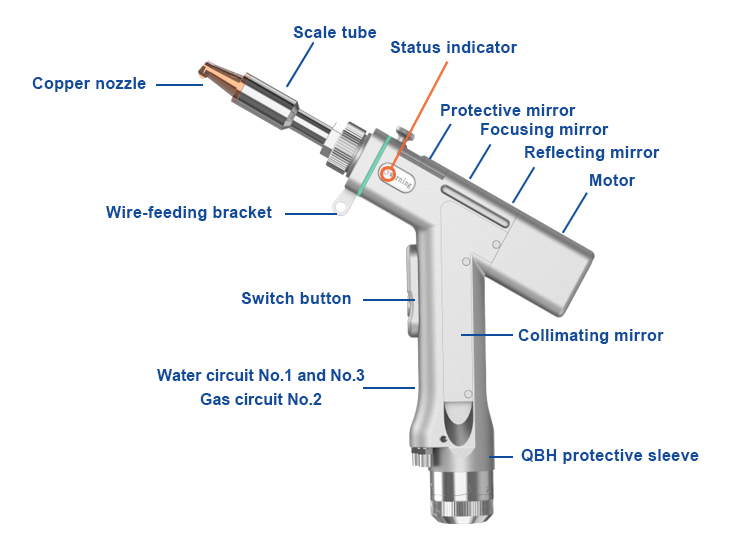

Focusing mirror, protection mirror drawer, collimator and QBH integrated, removable, easy to replace on site
Compared with the previous generation, the weight is further reduced, the operation is more flexible, the hand is easier, and the grip is more comfortable
The optical structure is further optimized, with high welding strength, small deformation and high penetration depth

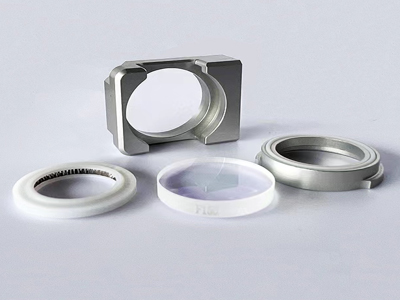

Applicable to our welding, cleaning products of focusing lens, collimating lens, reflective lens,and protective lens.applicable for 1500-3000W, high temperature resistance, laser resistance，double anti-reflection film.
Galvanized Welding
Aluminum welding

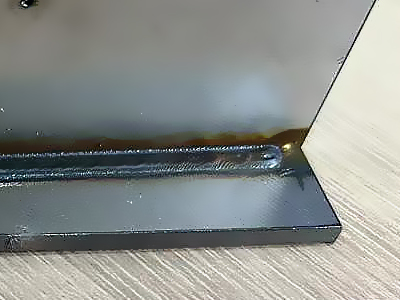

Carbon steel welding
| Brand:BUVAuncom | Model:BV-WW2500 / 3000 |
| Input Voltage | 380±10% V AC,50/60Hz |
| Gross Power | ≤14KW@3000W |
| Laser Power | 2500W/3000W optional |
| Laser output mode | Continuous or modulate |
| Laser wavelength | 1080±5nm |
| Fiber length | 10m or customized |
| working Temperature and Humidity | 10~40 ℃;30-70% No condensation |
| Scan width-weld | 0~6mm|SUP21T（0~8mm|SUP23T optional） |
| Scan Width-Cleaning | 0~15mm(0~30mm/F400 optional) |SUP21T (0~30mm/F150;0~60mm/F400;0~120mm/F800 |SUP23T optional） |
| Packing Dimension | 1640*740*1320(mm) |
| Packing Weight | <180kg |
