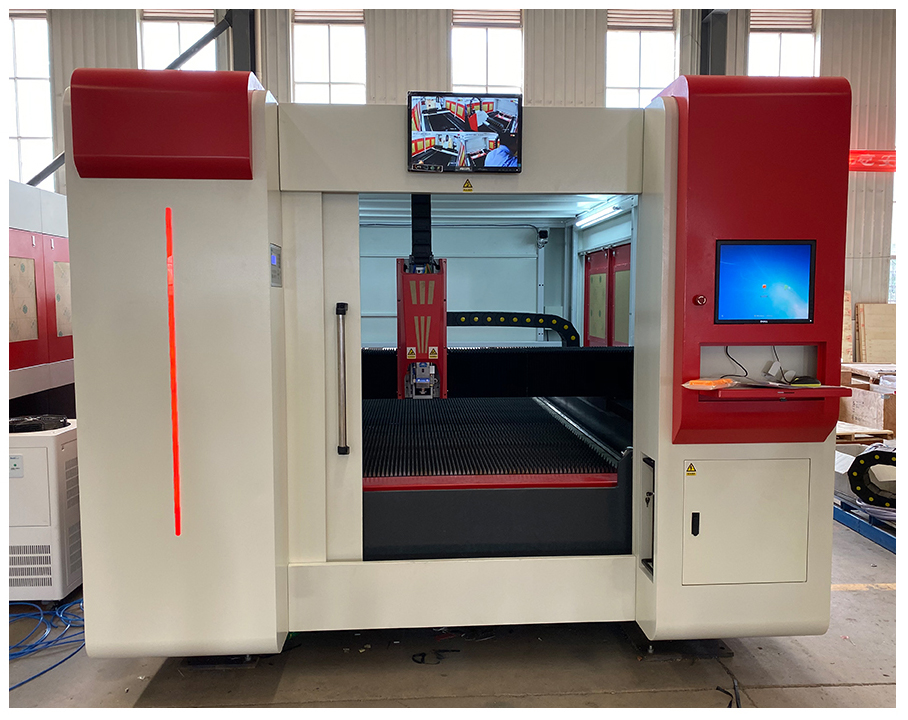

Exchangeable Table Fiber Laser Cutting Machine

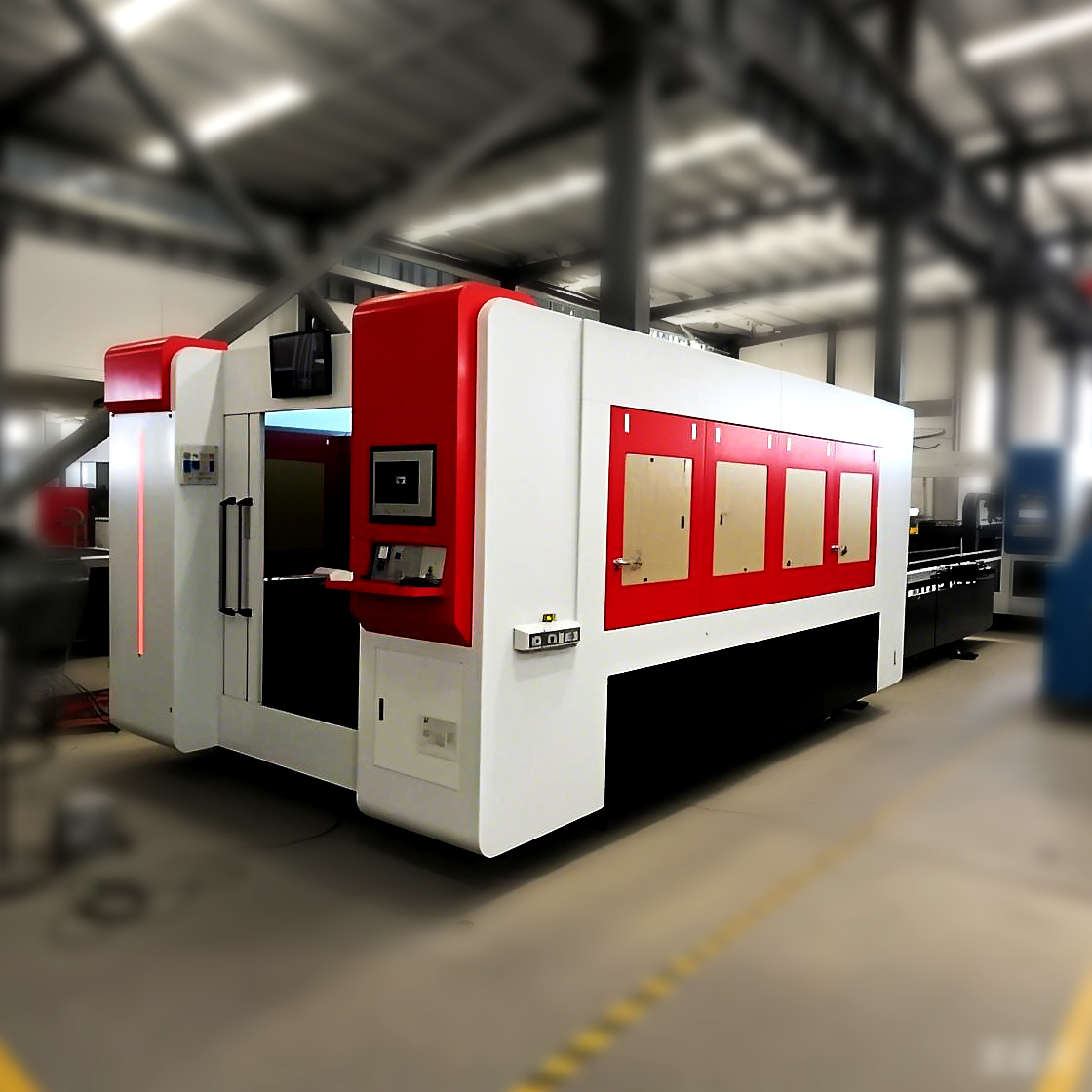

Exchangeable Table Fiber Laser Cutting Machine - Image 2

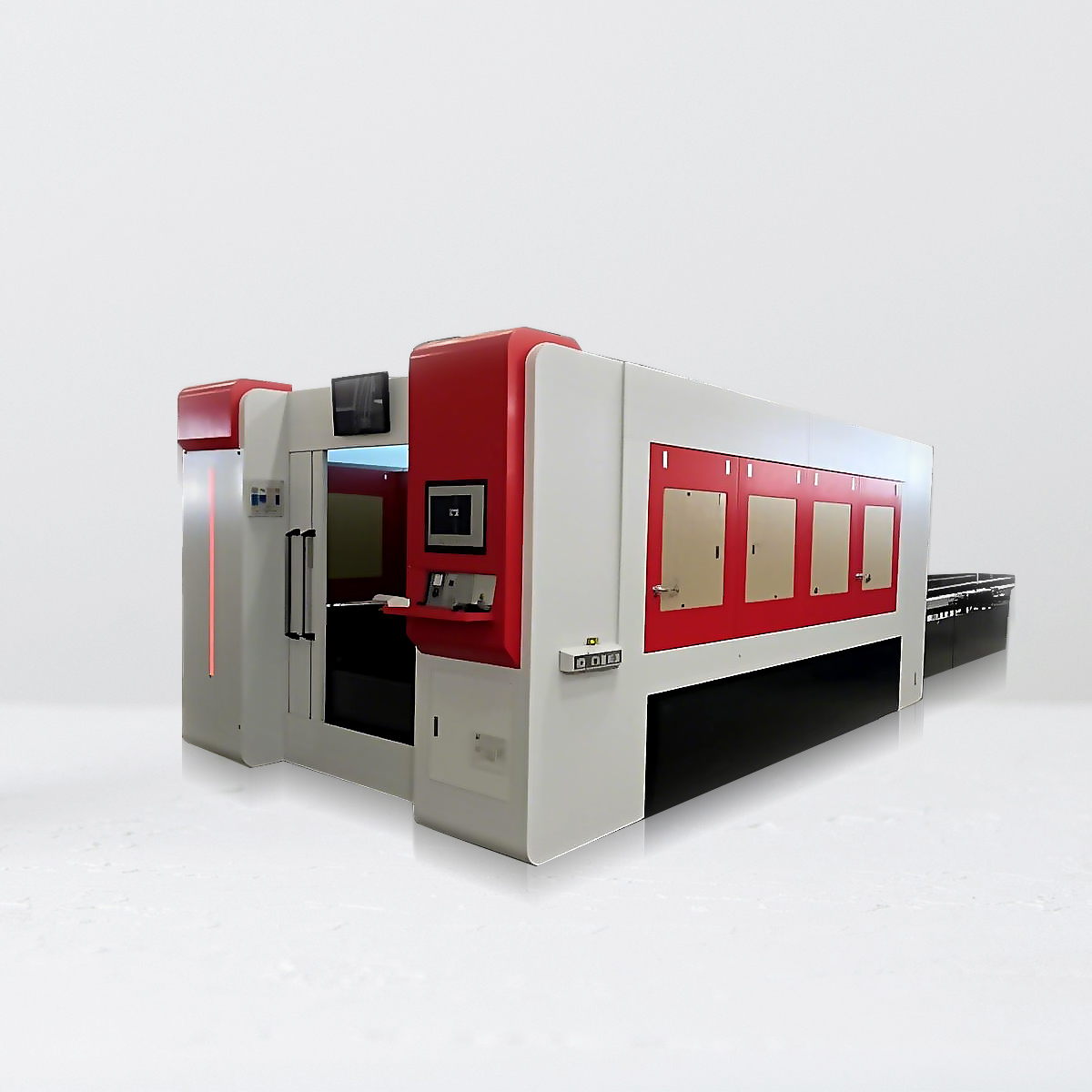

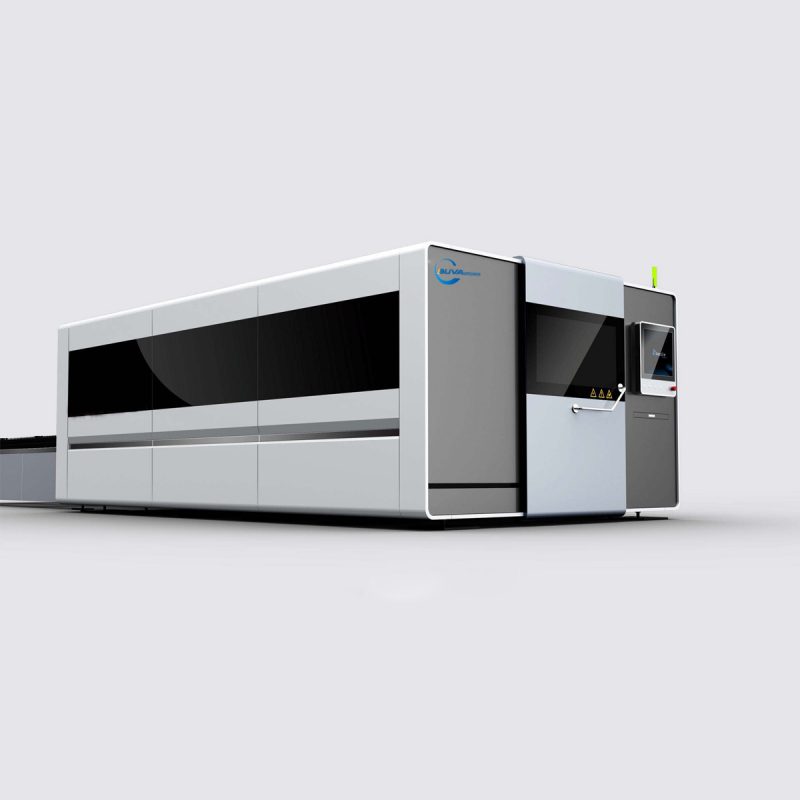

Exchangeable Table Fiber Laser Cutting Machine

Rated 4.50 out of 5 based on 2 customer ratings

This fiber laser cutting machine features a modular exchangeable table design, combined with a fully enclosed protective structure and premium imported components. It delivers high-speed, ultra-stable cutting performance for metal sheet processing, making it an ideal choice for industrial mass production and precision manufacturing.

Additional information

Color	Red, Blue, Black
Cutting Range	3000mm*1500mm
X Axis Moving Distance	1525mm
Y Axis Moving Distance	3050mm
Z Axis Moving Distance	≥100mm
X,Y Axis Position Precision	±0.03mm/m
X,Y Axis Repeat Position Precision	±0.02mm
X,Y Axis Max Acceleration Speed	1.5G
Total Power Supply Protect Class	IP54

Mobile gantry structure with full enclosure design ensures long-term stability and safety, while meeting national environmental standards.
Automatic exchange worktable allows simultaneous loading/unloading and processing, improving efficiency and saving time.
Excellent compatibility, strong stability, easier maintenance, and enhanced cutting capabilities.

Interchangeable machine tool structure (high-efficiency exchange, completed within 13 seconds)

Fully enclosed structure of the processing area

Generous overall appearance and reasonable structure

Stable and reliable, high speed, and high efficiency

Machine Costruction & Featuresn

Gantry-Type Mechanical Structure: Compact Design, High Strength, and Precision

Heavy-Duty Construction: Built with a robust, gantry-type design, the system ensures maximum stability and strength, making it suitable for high-accuracy tasks in various industries.
Exceptional Durability: Crafted with advanced war industry techniques and annealing treatment, this structure promises long-lasting performance, with a lifespan of over 10 years under regular use.
Compact & Efficient: Despite its heavy-duty build, the gantry system occupies minimal space, providing high working efficiency and stable operation.
Impressive Performance: The machine delivers superior performance in demanding environments, maintaining accuracy and operational stability.
Weight: The entire system weighs approximately 3 tons, combining substantial strength with a manageable footprint.

Raycus Fiber Laser Generator CE Rackmount Ytterbium Fiber Laser Module

Low Energy Consumption: The Raycus Fiber Laser Generator boasts an impressive photoelectric conversion rate of 25-30%, making it significantly more energy-efficient than traditional CO2 laser cutting machines. With only about 20%-30% of the power consumption of traditional CO2 lasers, this unit helps save energy and protect the environment.
Long Lifespan: Designed for durability, the Raycus 6000W fiber laser has an exceptional lifetime of over 100,000 hours, ensuring minimal maintenance and reduced operational costs.
Low Maintenance: The fiber laser module requires almost no maintenance, reducing the need for frequent service and ensuring that your operations stay uninterrupted.
Global Service and Support: As a CE-certified product, the Raycus Laser Source is supported by Raycus Brand service centers worldwide, offering reliable, professional service wherever you are.

Cooling system : HL-2000 / HL-3000 / HL-4000 / HL-6000

Precision Temperature-Control Display Water Chiller ,our chiller’s compressor (imported famous brand), evaporator with high-quality titanium tubes (Stainless Steel Plate evaporator for non-standard products), circulating multi-stage pumps with stainless steel materials, refrigerant drying systems use filters, thermal expansion valve to get high-quality, high efficiency and low noise’s performance.

And turbo flow intellectual switch is for controlling the temperature of cooling water in laser lamp;the flow control is for ensuring long-term continuously operation of the laser generator.

Laser head with automatic Focuse Function

famous brand auto focus laser cutting head+follower system with condenser sensor, water cooling and anti-collision device function.

Can make much more faster penetrate than normal manual focus cutting head.

Gear & Rack System

KH Gear & Rack sytem, ensure hgh cutting speed with extremely precision position

Linear Guiderail

Higher speed noise volume is lower,ensure high accuracy and long service life.

Reduction Gear

Installed on Y axis,it can protect the ball screw transmission and keep the smooth operation of the machanism.

Drive System

Imported servo system ensures the possibility of realizing extreme precise positioning with the excellent dynamic response acceleration property and closed loop control method, and that makes moving positioning mechanism operate smoothly, reliably and free of maintenance;
Motors in X,Y,Z axis; loacation accuracy: ≤±0.04mm
X = 1.5KW, Y=1.8KW, Z=400W

Cypcut Operation Cut System Software,support AutoCAD,Coreldraw with FSCUT2000E ethercat control system

The professional cutting software which supports cutting path in dxf, plt and other graphic formats;capable of setting cutting parameters in different layers;combining joined lines to ensure automatic splice of curve nodes;smoothing fold lines to obtain smooth cuts;optimized immediately after the completion of graphic design,thus improve the productivity. By making use of the compensation function of this professional cutting software,various cutting accuracy grades may be obtained.

Gas Supply System:

The gas can flow away the cutting dust ,keep the clean of the machine and working enviroment;
Air, Oxygen and Nitrogen, Argon gas, Xenon gas and other inert gases can be used to cut. Oxygen cuts thicker than Nitrogen, but Nitrogen cuts smoother than Oxygen on the edge. Normally, customers will buy gas from local market, it's cheap and convenient, and customers can choose different gas to cut metals accroding to the metal thickness.

Accessory Optional

Air Compressor

International hotsale popular brand, high configuration, 11KW/15bar integrate type air compressor, can continuely stable supply high pressure air for cutting

Voltage Stabilizer

Stabilize the voltage at 380V, ensure machine can working under stable voltage

Product application

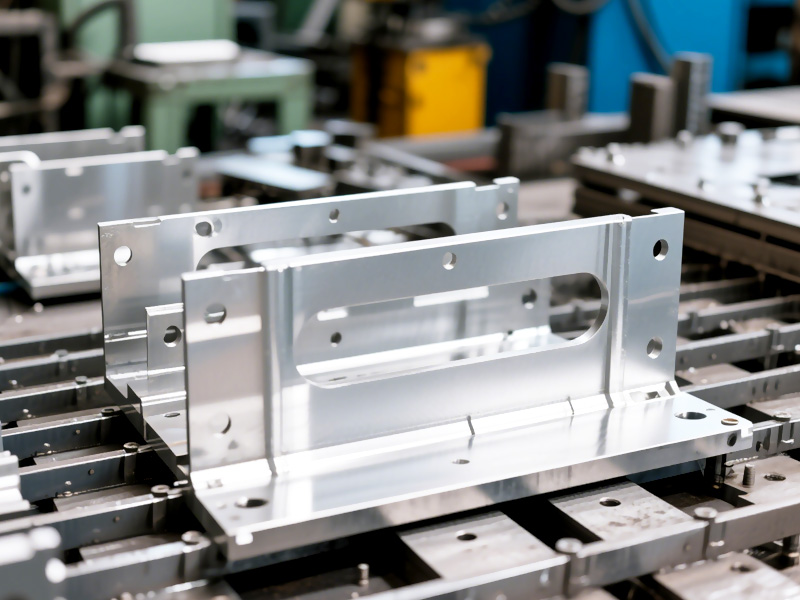

Widely used in various manufacturing and processing industries, including: Sheet metal fabrication, Aviation & aerospace, Electronics & electrical appliances, Subway/railway components, Automotive manufacturing, Machinery & equipment, Precision components, Shipbuilding & marine engineering, Metallurgical equipment, Elevator manufacturing, Household appliances, Crafts & gifts production, Tooling & machining, Decorative materials, Advertising signage, Metal contract machining, And other manufacturing sectors

Aviation and Aerospace Industry

Automobile

Tool processing

Product Parameters

Laser Power	1000W-20000W
Laser Brand	Raycus
Laser Wavelength	1070nm
Z Axis Move Distance	≥280mm
Positioning accuracy	±0.03mm/m
Repeat positioning accuracy	±0.02mm
Power Supply	380V/50HZ
Maximum bearing capacity	800-4000KG (according to different laser power)
Cooling Mode Water Cooling	Water Cooling
Operating temperature of machine	0℃-40℃
Operating humidity of machine	5%-90%
Machine Weight	7000-22000KG(according to different machine size)
Machine Size	915029002400mm
Other machine size options	3000x1500mm
	4000x1500mm
	6000x1500mm
	8000x1500mm
	4000x2000mm
	4000x2000mm
	6000x2000mm
	8000x2000mm

Cutting Parameters

Cutting parameters	6kw			12kw			20kw
Material	Thickness（mm）	Speed（m/min）	Pressure(bar)	Thickness（mm）	Speed（m/min）	Pressure(bar)	Thickness（mm）	Speed（m/min）	Pressure(bar)
Mild steel （O2）	1	8.0-10.0	0.7	1	8.0-10.0	0.7	1	8.0-10.0	2.5
	5	2.5-2.8	1	5	2.5-2.8	1	5	2.5-2.8	0.7
	10	1.1-1.2	1	10	1.2-1.3	1	10	1.2-1.3	0.65
	16	0.75-0.85	1	16	0.9-1.0	1	16	0.9-1.0	0.65
	25	0.40-0.60	1.1	25	0.5-0.6	1.1	25	0.5-0.6	1
				30	0.4-0.5	1.2	30	0.3-0.55	1.1
				40	0.2-0.3	1.2	40	0.25-0.35	1.4
							50	0.20-0.28	2
							60	0.15-0.21	2
Stainless steel （N2）	1	50-60	10	1	50-60	10	1	50-60	9
	8	3.5-4.0	10	8	10-14	10	8	14-17	7-12
	10	2.5-3	8	10	6-10	8	10	10-13	7-12
	25	0.2-0.27	8	25	0.6-1.0	8	25	1.4-1.8	7-12
				30	0.3-0.7	15	30	0.9-1.2	7-12
				40	0.15-0.3	15	40	0.2-0.5	18
							50	0.15-0.2	18
							60	0.1-0.13	18
Aluminium （AIR）	1	40.0-50.0	12	1	50-60	12	1	50-60	10
	5	10.0-12.0	12	5	28-38	12	5	33-35	10
	10	1.2-1.8	12	10	4.0-6.0	10	10	8.5-11	10
	16	0.3-0.6	10	16	1.0-1.5	10	16	2.8-3.4	10
				25	0.4-0.6	10	25	0.8-1	10
				30	0.2-0.4	10	30	0.5-0.7	12
							40	0.3-0.4	12
							50	0.1-0.15	12
