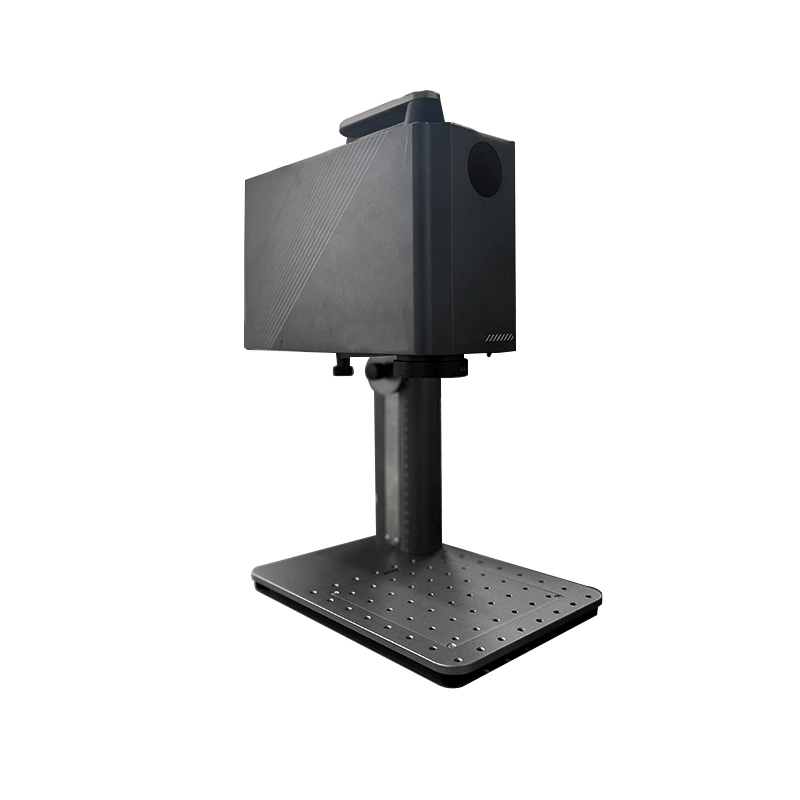

This machine features an integrated dual-source design with fiber (1064nm) + blue (450nm) laser, supporting free one-click switching. Whether it’s high-precision marking on hard materials like metals and alloys, or fine processing on wood, plastic, ceramic, glass, and more – it delivers excellent performance. One machine for multiple materials – no need to change equipment, greatly improving marking convenience and efficiency.
| Laser Wavelength | Red Light (1064nm): 25W, Blue Light (450nm): 20W |
|---|---|
| Working Area | 100*100MM |
| Suitable Materials | Metals, alloys (hard materials), wood, leather, plastic, ceramic, glass, and many other materials. |
| Bare Machine Dimensions | 280*210*425mm |
| Bare Machine Weight | 8.75Kg |

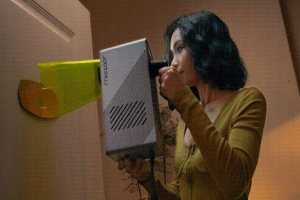

Break free from the limitations of traditional workshops. With handheld operation and a detachable, portable body design, you can engrave anytime, anywhere.

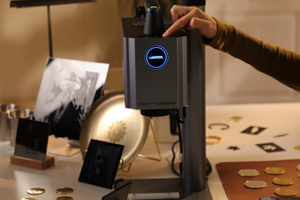

Equipped with an electric lift stand, the height can be easily adjusted via up/down touch buttons. No manual cranking required – quickly and precisely position the machine at your ideal working height.

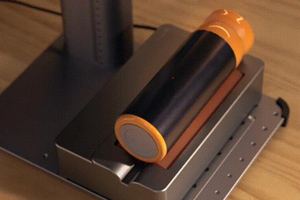

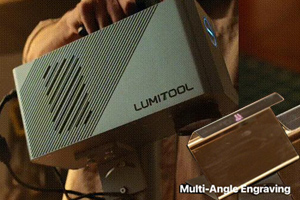

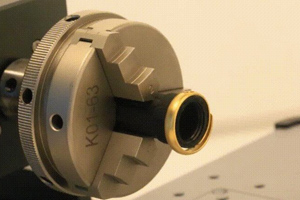

Flexibly adapts to complex curved surfaces and multi-angle requirements of different workpieces. Whether flat, curved, or irregularly shaped structures, it delivers uniform and precise engraving results.

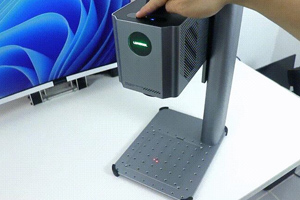

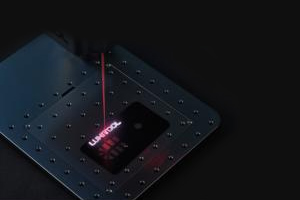

Breaks through traditional positioning methods for fast and accurate alignment. Simply align the two red dots to achieve perfect focus on the very first try.
Supports one-click switching between two light sources:
Red Laser (1064nm wavelength) : Concentrated and stable energy, ideal for high-precision marking on hard materials such as metals and alloys.

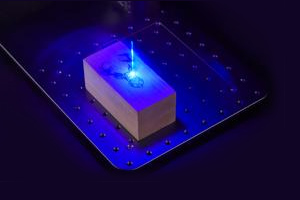

Blue Laser (450nm wavelength) : Superior penetration and absorption, delivering excellent performance on brittle or highly reflective materials including wood, plastic, ceramic, glass, and more.

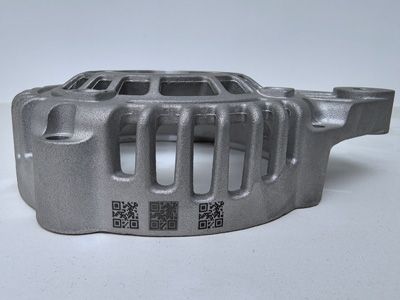

Applications: With clear and permanent marking, high efficiency, eco-friendliness, and high precision, laser marking machines are widely used across industries including electronics, automotive, medical devices, hardware, food packaging, aerospace, jewelry, tobacco, building materials, and more.

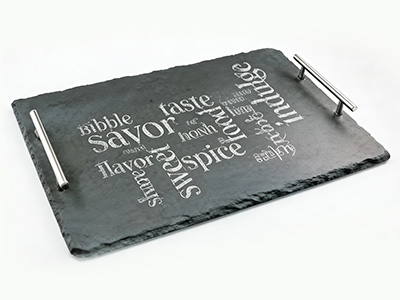

Household Item
| Working Area | 100mm” 100mm |
| Laser Type | Red light power/wavelength: 25W/1064nm Blue light power/wavelength: 20w/450nm |

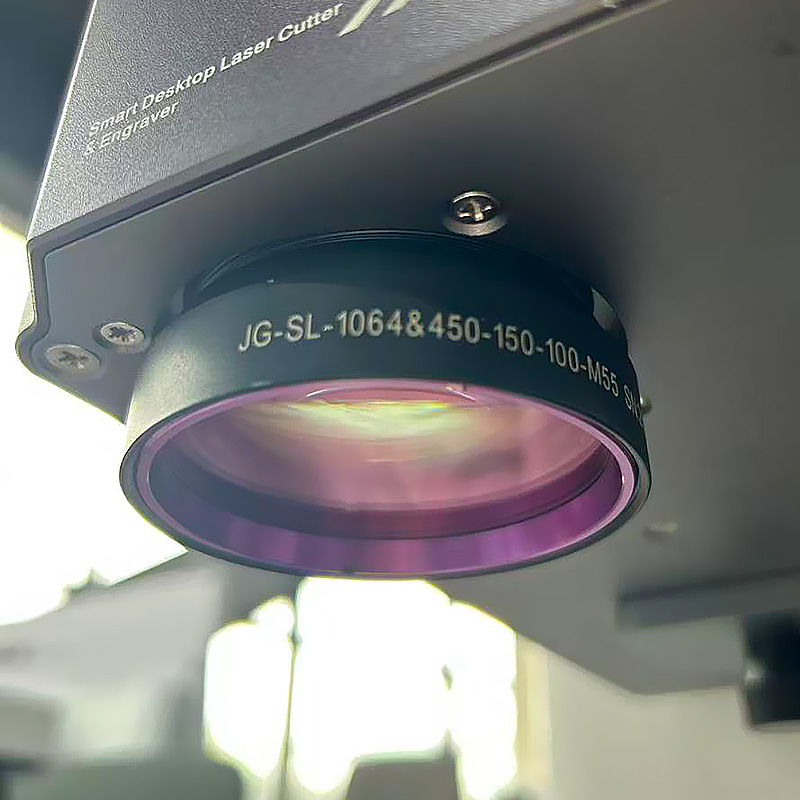

| Field Lens Configuratio | Achromatic lens |
| Resolution | 2K/4K/8K/10K |
| Cutting Depth | 1.5mm on Metal, 3mm on Stone |
| Engraving Precision | 0.001mm |
| Repeat Pulse Frequency Range | 5-150(kHz) |
| Output Power | 25-28W |
| Input Power | 12V/20A |
| Engraving Speed | 10000mm/s |
| Net Weight | 8.75kg |
| Operation Temperature | -15-35℃ |
| Laser Head Dimensions | 280x130x230mm |
| Laser Stand Dimensions | 280x210x425mm |
| Support File Format | JPG/ PNG/BMP/G-Code/ PLT/DXF/ Ai/SVG |
| Pc Support System | Windows& Lightburn |
| Mobile Support System | iOS & Android & HarmonyOS |
| Wireless Connection | BlueTooth, Wi-Fi |
