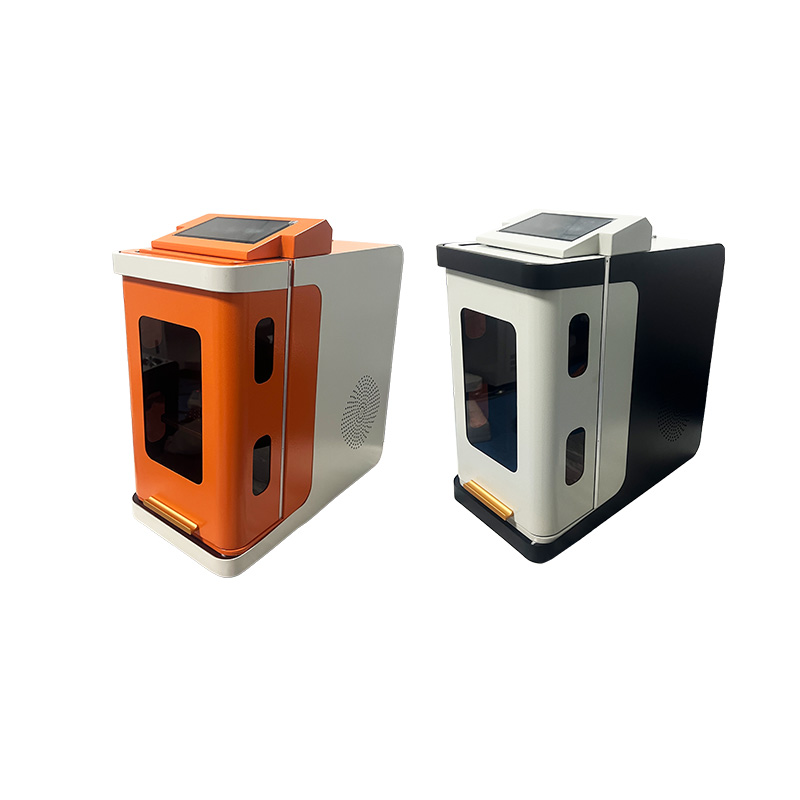

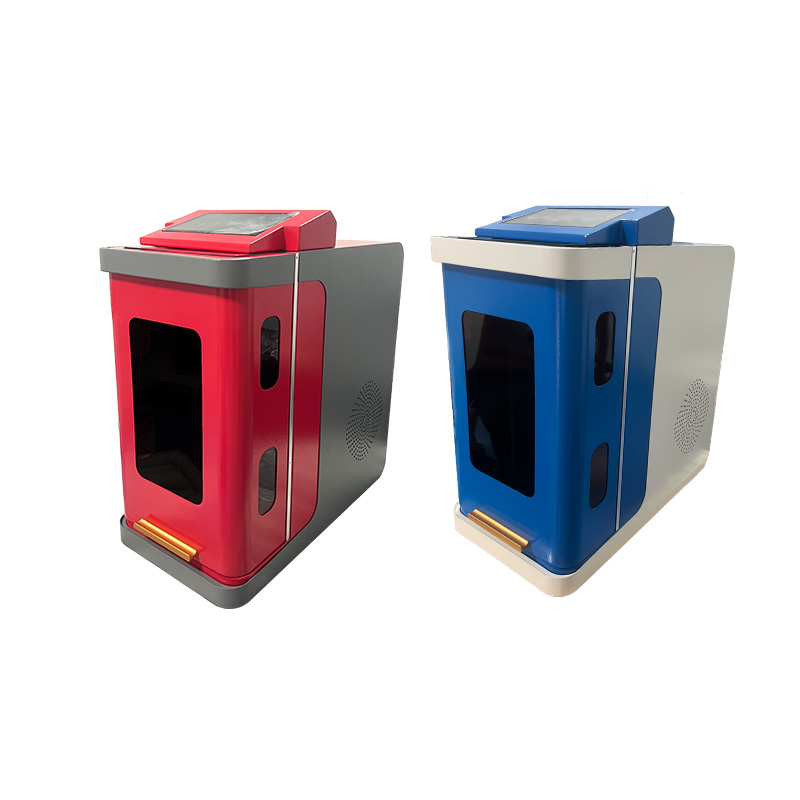

The 3D Laser Crystal Engraving Machine is a newly upgraded model based on a 70×70 mm engraving area. It is mainly used in small-sized product applications such as wedding photography studios, advertising gifts, tourist attractions, and crystal engraving processing. Its biggest advantages are its compact size, lightweight design, easy portability, and affordable price, making it especially suitable for startups and small businesses.
| Laser Power | 5W |
|---|---|
| Laser Wavelength | 532nm |
| Maximum Engraving | 70*70*70mm |
| Suitable Materials | Crystle, glass, acrylic, PC/PET sheet, transparent materials. |
| Bare Machine Dimensions | 500*250*510MM |
| Bare Machine Weight | 26KG |
Supports transferring any bitmap format and 3D model files directly from a mobile phone.
Capable of engraving any text or pattern inside transparent materials such as acrylic, crystal, and glass, achieving true multi-functional use

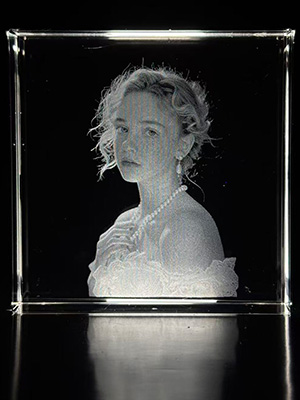

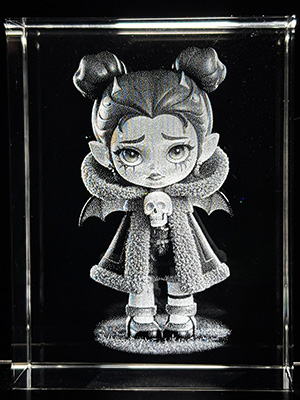

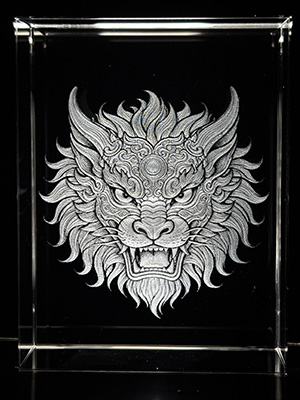

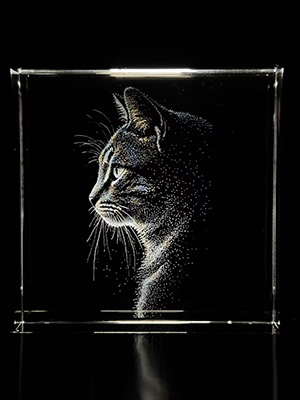

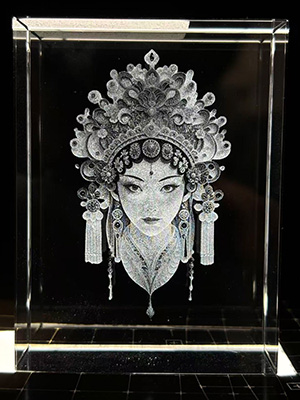

Can engrave flat photos, baby handprints and footprints, trophies and medals, 3D portraits, and various 3D models.
Improves engraving accuracy and delivers better engraving results.
Features self-developed, beginner-friendly software. Anyone familiar with using a smartphone can learn to operate the machine independently within one hour. Suitable for both mass production and personalized customization. During batch production, one operator can run multiple machines, reducing labor cost.
For a 368-spec crystal portrait, high-quality engraving can be completed in about 5 minutes.
Since the laser engraves inside crystal, glass, acrylic, and transparent plastic films without damaging the surface, there is no dust or pollution emitted.
The engraved pattern is formed inside the material, with no external gaps or marks. It cannot be removed by acids, solvents, heat, or friction, ensuring complete tamper resistance.
The machine consumes around 0.5 kWh per hour, operating on 220V 50Hz power supply.
| Laser types | Solid-state laser |
| Laser wavelength | 532 |
| Maximum engraving | 70*70*70MM |
| Laser power | 5W |
| Power Requirements | 100-240V/50-60Hz |
| Laser chiller mode | Air cooling |
| Laser frequency | 1~10 |
| Focus length | 100mm ( Standard ) |
| Focus diameter | 0.03mm |
| Laser mode life span | 20000 Hours |
| Suitable materials | crystle, glass, acrylic, PC/PET sheet, transparent materials. |
| Environment | Temperature: 15 – 35℃, humidity: 10 – 90% RH, no condensation. |
| Bare Machine Dimensions | 500*250*510MM |
| Bare Machine Weight | 26KG |
Note: The above are standard configurations and parameters. Special requirements can be customized, including laser parameter performance.
External and internal marking of panels, phone buttons, housings, lenses, membrane switches, and IMD/IML products.
Internal engraving of transparent materials such as logos, names, texts, symbols, and patterns.
Anti-counterfeiting and anti-diversion marking, such as anti-counterfeiting codes, regional codes, QR codes, production dates, and logistics codes.

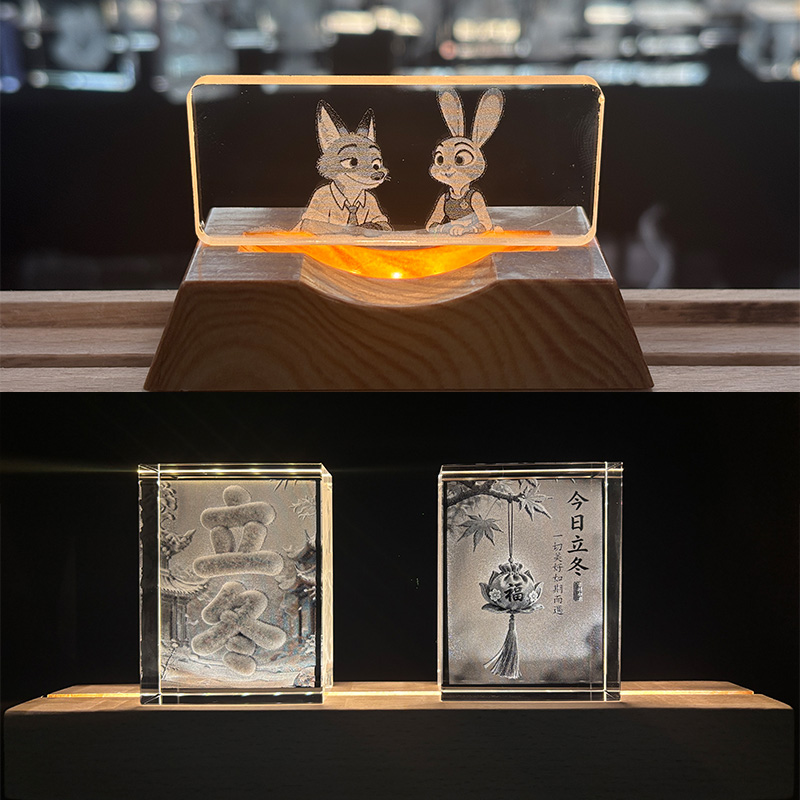

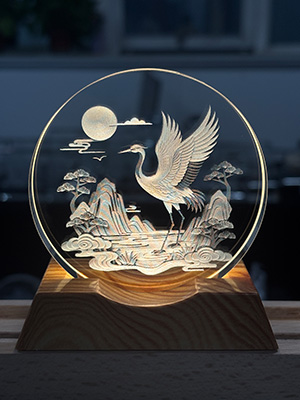

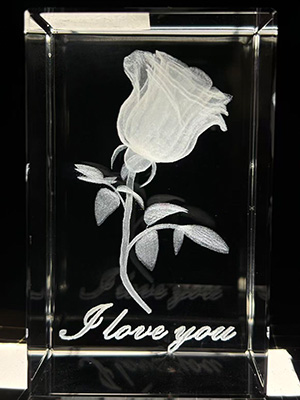

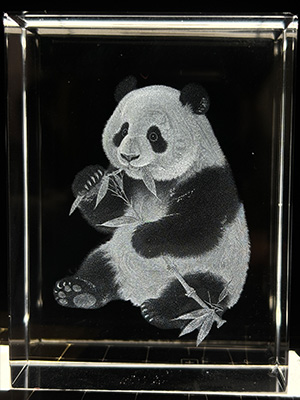

Production of portraits, souvenirs, trophies, and medals.
Marking for ceramics; automotive headlights; eyeglass lenses and frames; watch dials; ultra-thin light boxes in the advertising industry; and any internal engraving on transparent materials.
