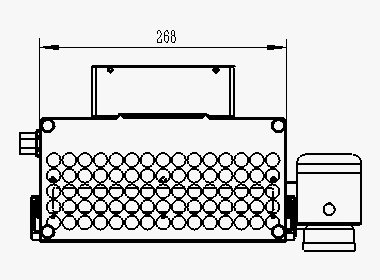

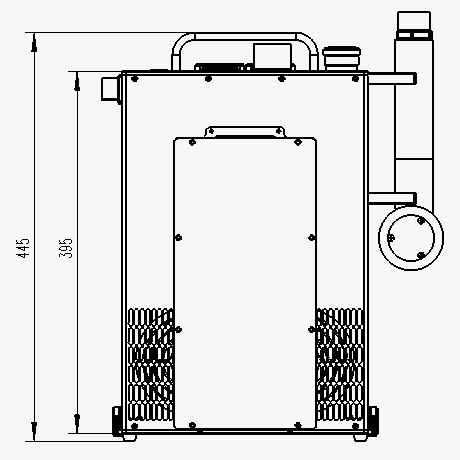

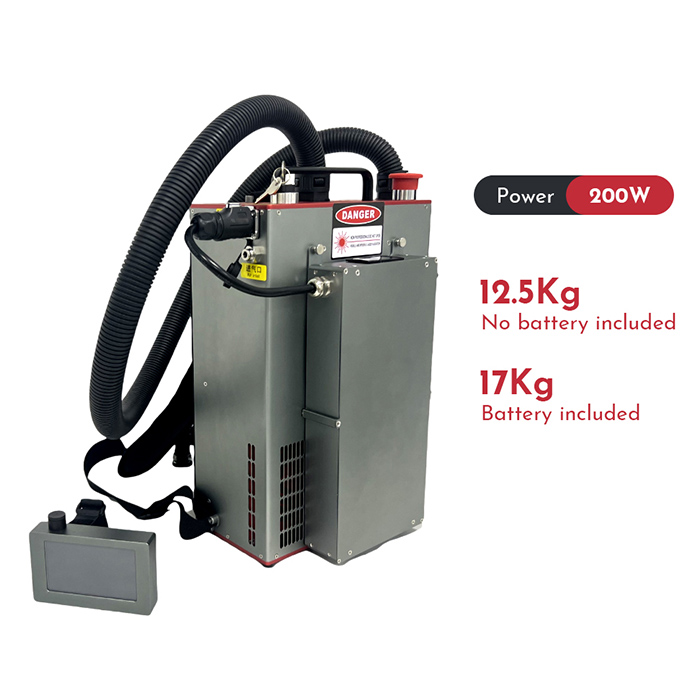

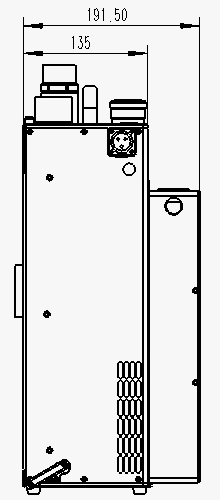

The 200W backpack-type pulsed laser cleaning machine is easy to install, control and automate. Its overall dimensions are 268mm × 445mm × 135/191.5mm, and the total weight of the whole machine is 12.5kg (excluding battery) and 17kg (including battery), which is smaller and lighter than similar equipment on the market.
| Supply voltage | Standard AC220V±10%, 50/60Hz power adapter (output DC48V), Optional single battery, 200W continuous work 80min |
|---|---|
| Power consumption | ≤800W |
| Working environment temperature | 5℃～40℃ |
| Average laser power | ≥200W |
| Laser Working Mode | Pulse |
| Pulse width | 13-500ns |
| Fiber length | 1.5m |
| Cooling mode | Air cooling |
The backpack-type pulsed laser cleaning machine is simple to operate. It can be used by turning on the power and starting the equipment.
Without the need for chemical reagents or media, it can achieve dust-free and water-free cleaning. It can fit the surface for cleaning, and the cleaned surface has high cleanliness.
Compared with traditional cleaning methods, the backpack-type pulsed laser cleaning machine boasts advantages such as non-contact operation, no damage to the substrate, precise cleaning, "green" environmental protection, and on-line operability. It is particularly suitable for high-speed on-line cleaning of designated areas.

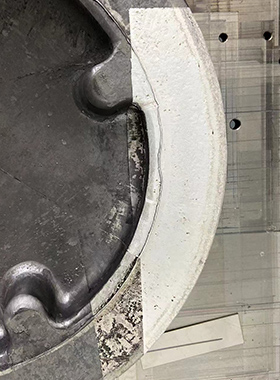

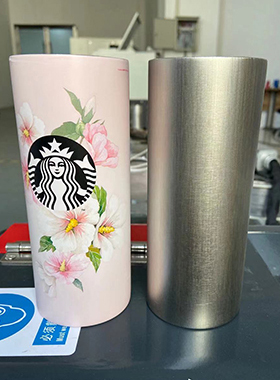

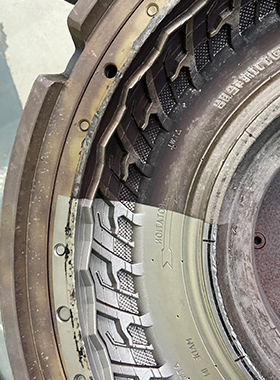

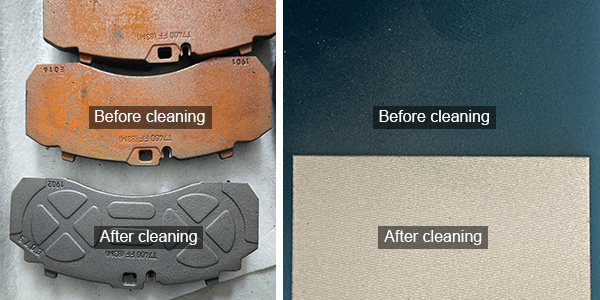

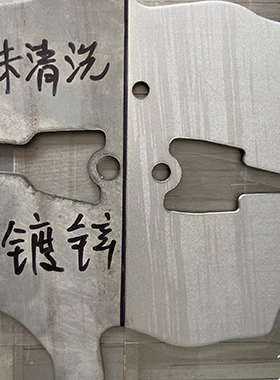

This laser cleaning machine can remove resin, paint, oil stains, dirt, rust, plating, coatings and oxide layers from the surface of objects. It has a wide range of applications, covering industries such as shipbuilding, auto repair, rubber molds, high-end machine tools, railways and environmental protection.

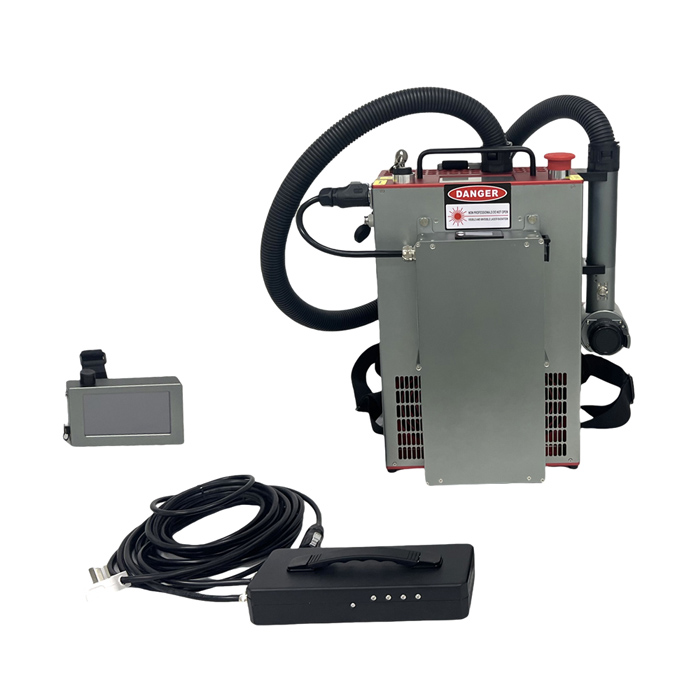

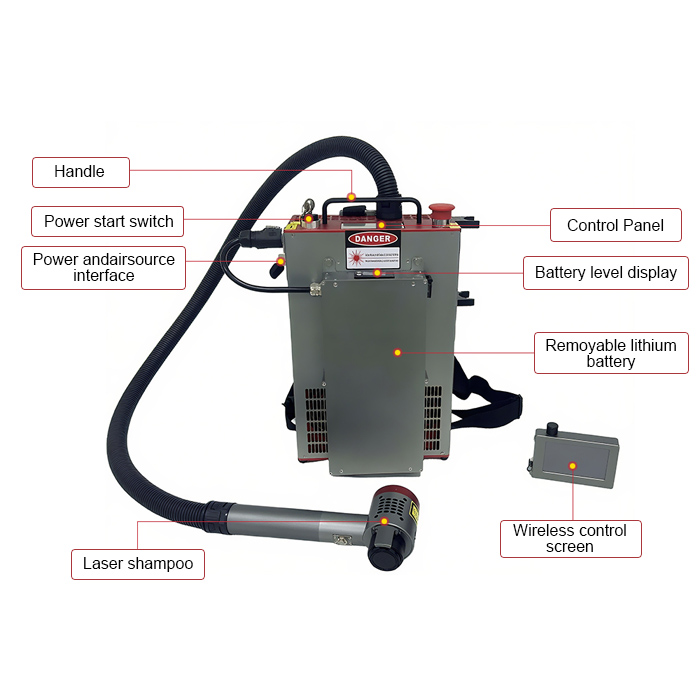

Backpack design, small in size, light in weight, convenient to carry and suitable for mobile cleaning.
Non-contact cleaning, no damage to the part substrate, 360-degree dead-angle-free, precise cleaning without consumables.
| Single-mode laser cleaning machine | Multimode laser cleaning machine | |
| Average laser power | ≥200W | ≥200W |
| Power instability | ＜5% | ＜5% |
| Laser Working Mode | Pulse | Pulse |
| Pulse width | 13-500ns | 13-500ns |
| Maximum monopulse energy | 2mJ | 5mJ |
| Power regulation range (%) | 0-100( Gradient Adjustable) | 0-100( Gradient Adjustable) |
| Repeat frequency (kHz) | 1-3000( Gradient Adjustable) | 1-3000( Gradient Adjustable) |
| Fiber length | 1.5m | 1.5m |
| Cooling mode | Air cooling | Air cooling |
| Scan range (length * width) | 0mm~145mm, continuously adjustable; Biaxial supporting 9 scanning modes |
0mm~145mm, continuously adjustable; Biaxial supporting 9 scanning modes |
| Field mirror focal length(mm) | 210mm (Optional 160mm/254mm/330mm/420mm) | 160mm (Optional 210mm/254mm/330mm/420mm) |
| Depth of focus | About 5 mm | About 5 mm |
| Machine Weight | About 12.5Kg (Do not contain batteries) | |
| About 17Kg (Contain the battery) | ||
| Mode of operation | Wireless control screen | Wireless control screen |
