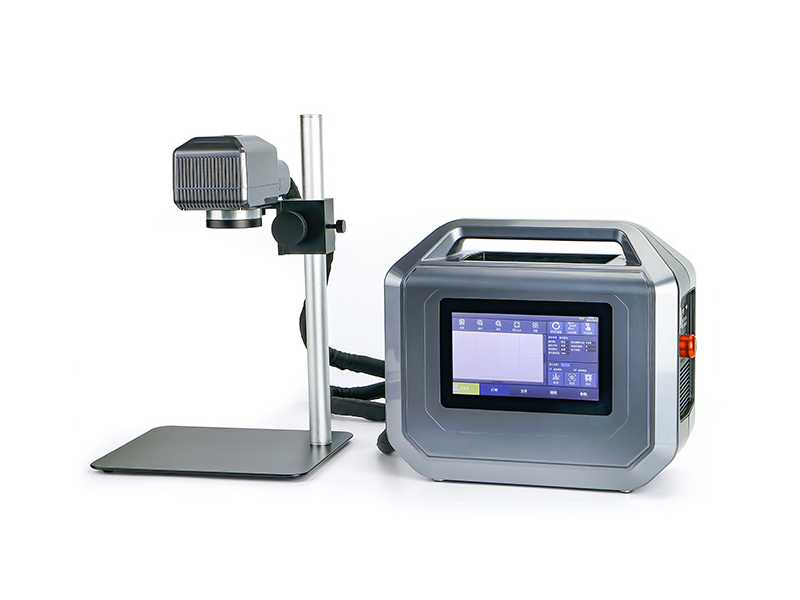

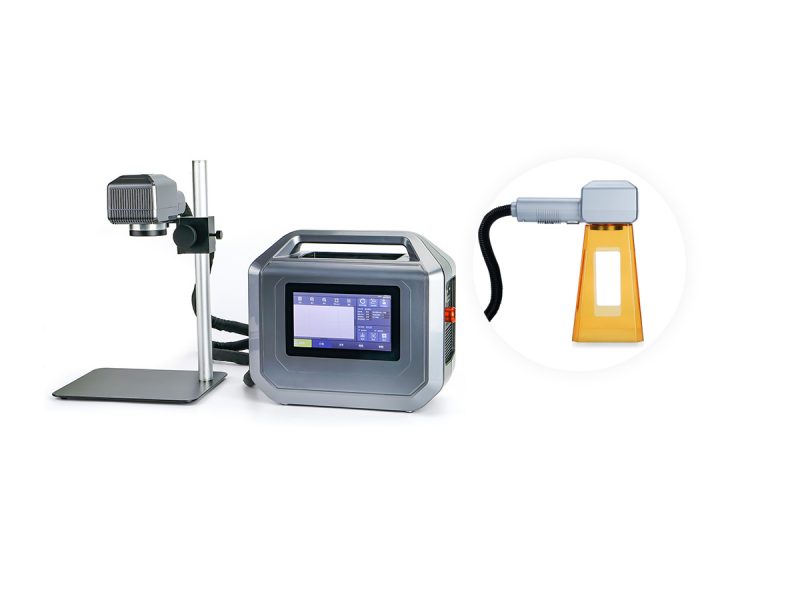

Dual-Mode Laser Marking Machine – Handheld & Desktop 2-in-1
Switch effortlessly between portable handheld freedom and stable desktop precision. This mini laser engraver works on metal, wood, plastic, and more, perfect for DIY crafts, jewelry, industrial labels, and small-batch production. Compact yet powerful – ideal for hobbyists, small businesses, and on-site marking.
| Operation Mode | Handheld, Desktop (Dual-Mode) |
|---|---|
| Power Supply | 220V Plug-in Version, Lithium Battery Version (Optional) |
| Laser Type | Fiber Laser |
| Laser Power Options | 20W, 30W, 50W |
| Marking Speed | ≤7000mm/s |
| Marking Area (Work Range) | 100×100mm, 150×150mm, 175×175mm (Customizable) |
| Positioning System | Red Light Preview & Auto-Focus |
| Complete Machine Weight | Plug-in version: 4.5-6.0kg, Battery version: 5.5-7.0kg |
After 2 years of intensive R&D and rigorous field testing by 100+ industrial customers, we proudly introduce our ultra-compact laser marking solution. Leveraging advanced integrated engineering, this machine delivers industrial-grade performance in a 6KG portable design – replacing traditional 150KG systems without compromising capability.
90% lighter than conventional markers (6KG vs. 150KG)
Ideal for workshop floors, on-site maintenance, and tight spaces
Intuitive operation with minimal training required
Red-light preview & auto-focus for error-free alignment
60% lower logistics costs vs. traditional systems
Minimal after-sales demands with modular maintenance
When the laser is turnedon,it's prohibited to aimat humans, animals andflammables to avoid skinburns and fire.
The laser brightness isharmful to the eyes.Do not look directly at the laser.
Keep hands away from the machine during operation to avoid injury.
Turn off the machine when not in use to avoid misoperation by third parties.
Safety Compliance · Precision Performance · Industrial – Grade Certification
| Serial Number – Standard | |
| GB 7247-87 | Radiation Safety of Laser Products, Requirements for Equipment Classification and User Guidance |
| GB10320-88 | Electrical Safety of Laser Devices and Facilities |
| ISO9000-3 | International Software Standards |
| IEC 536 | Classification of Protection Against Electric Shock for Electrical and Electronic Equipment |

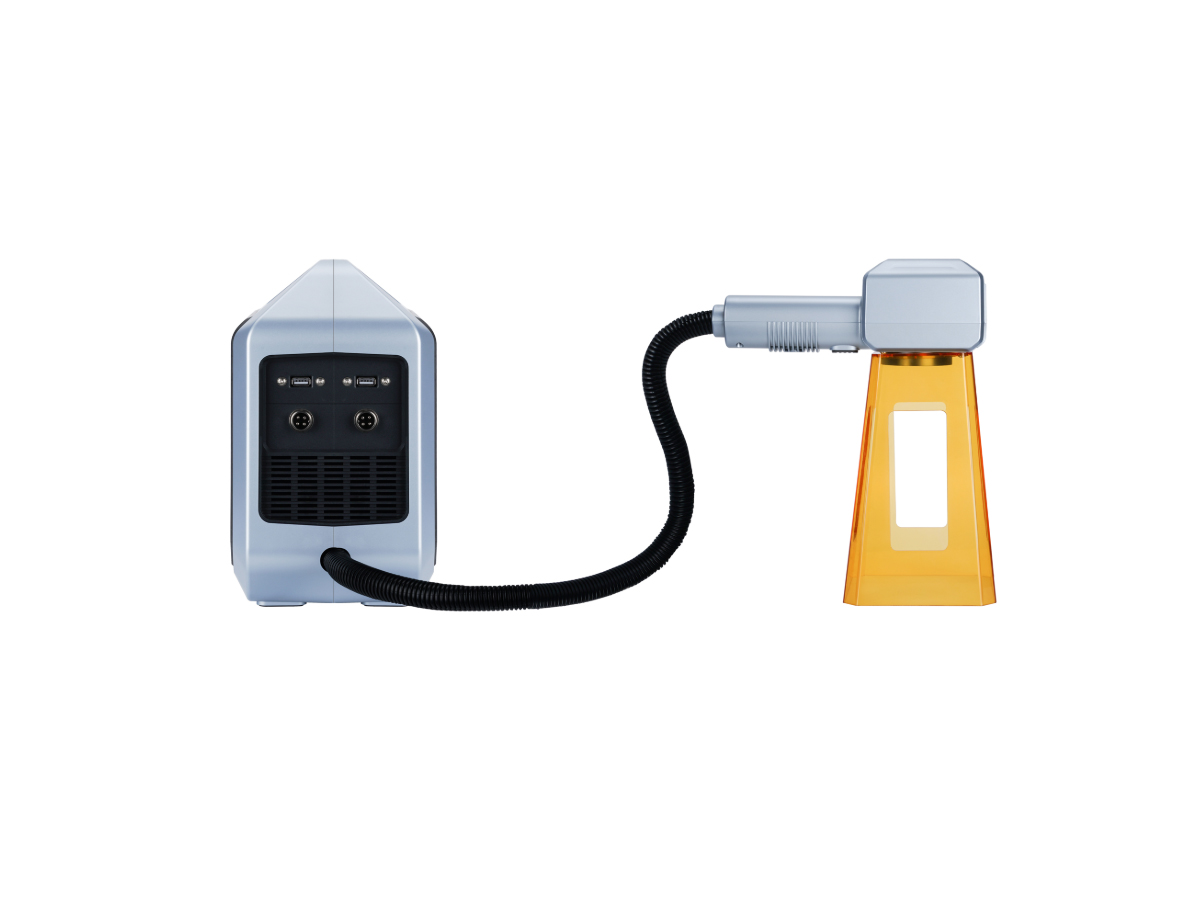

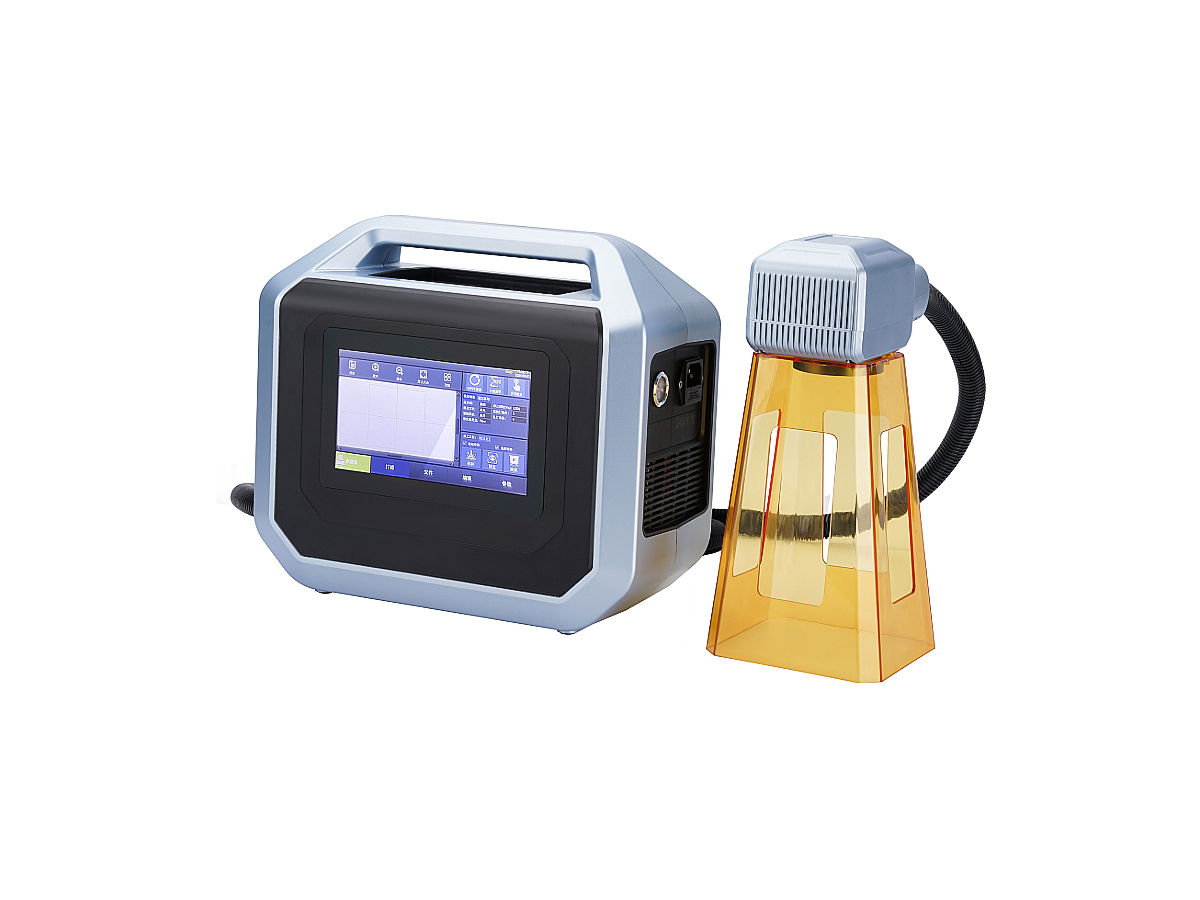

Handheld Laser Marking Machine – Portable Mini Laser Engraver for Metal/Plastic/Wood, 20W/30W/50W with Battery & Touch Screen
4.5-7.0kg mini handheld design,compact and lightweight, suitablefor various scenarios.
220V plug-in version/lithium battery version enables limitless endurance, capable of long-term full power operation.
7-inch fully bonded LCD display,one-touch activation.Multi-purpose device. Hardware compatibility is diversified.
Features an 8-core processor with a high-level security configuration, stable performance,and rapid response.
There is no need to control it via external computer devices or mobile phone apps. You can directly operate it through the touch screen. Moreover, it supports language switching, covering as many as 17 languages.
Marking of files such as PLT/DXF/IPG/PNG/DWG/PSD/EPS, etc.
Suitable for marking on various materials such as metals, plastics, wood products, epoxy resins, and rubbers.
| Technical Specification Sheet | |
| Laser | Fiber Laser Generator (Second Generation) |
| Output Power | 20W/30W/50W |
| Marking Range | 100x100mm, 150x150mm, 175x175mm |
| Scanning Galvo Mirror | Precision Dual-Axis Scanning System |
| Laser Wavelength | 1064nm |
| Marking SpeedTotal Weight of the Machine | ≤7000mm/s |
| Operating System | Linux System |
| Marking and Engraving Line Types | Dot Matrix and Vector Integrated Machine |
| Line Width | 0.03mm |
| Repeat Positioning Accuracy | 0.01mm |
| Positioning Method | Red Light Positioning, Focusing |
| Number of Lines for Character Imprinting | Flexible Marking within Effective Range |
| Printing Speed | 800 Characters (Dependent on Material and Printing Content) |
| Font | Standard Fonts for Simplified and Traditional Chinese, English, Numbers |
| File Formats | BMP、DXF、HPGL、JPEG、PLT |
| Barcode | CODE39、CODE128、CODE126、QR |
| Power Supply | 222Wh10AH |
| Machine Power Consumption | ≤250W |
| Operating Temperature of the Entire Machine | 0 – 40° |
| Total Weight of the Machine | 4.5 – 7.0kg (Plug-In Version 4.5 – 6kg, Battery Version 5.5 – 7kg) |
