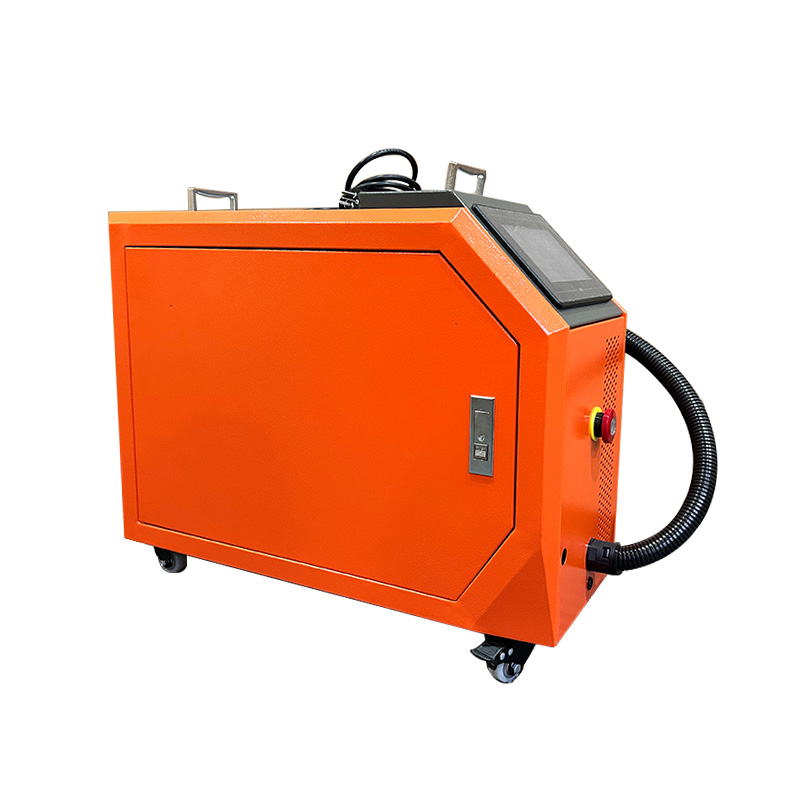

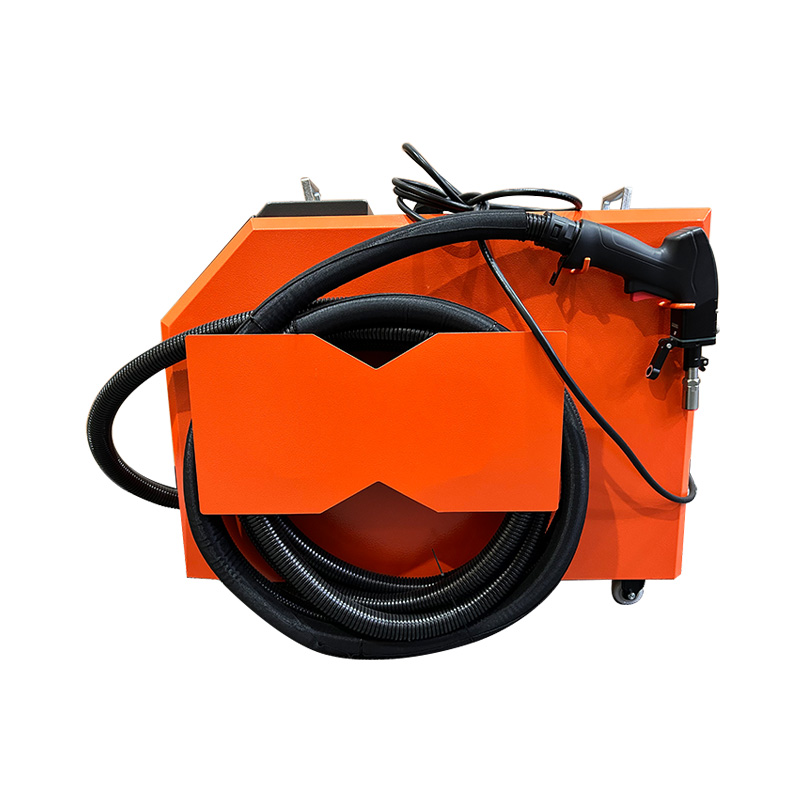

1200W Air-Cooled Compact Handheld Laser Welder
This all-in-one wire-feeding laser welding machine features a self-developed integrated design. It is lightweight, portable, maintenance-free, and ready to use right out of the box with no external devices required.
Equipped with intelligent phase-change cooling technology, it achieves highly efficient air cooling that performs reliably in both high and low-temperature environments. This eliminates the need for a traditional water tank and cumbersome water change procedures.
| Laser Power | 1200W |
|---|---|
| Cooling Method | Air Cooling |
| Optional Wire Diameter | 0.8/1.0/1.2/1.6 MM |
| Welding Thickness Range | 0.5-4mm |
| Working Mode | Continuous or Modulate |
| Optical Fiber Length | 10 m (customize) |
| Power Supply | 220V ±10 % ; 50/60 HZ AC |
| Suitable Material | Carbon steel, stainless steel, galvanized sheet, Aluminum, etc |

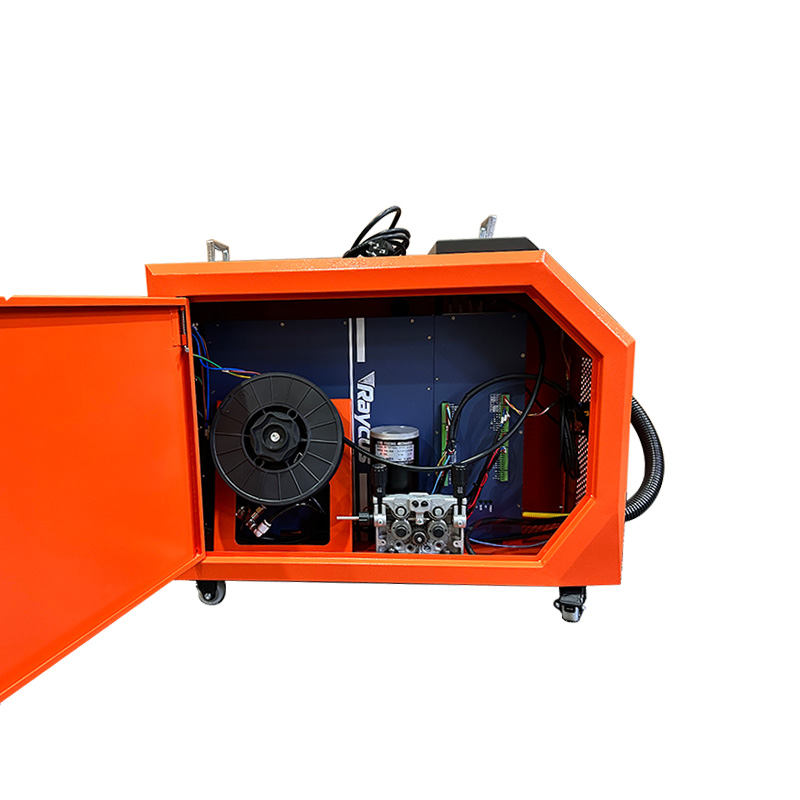

The wire feeder is built-in, with a compact and lightweight air-cooled body.
Tank-less design, no water change or extra maintenance needed.
Equipped with phase-change cooling tech, efficient and consumable-free.
Quick to learn, enables ordinary operators to achieve high-quality welds.

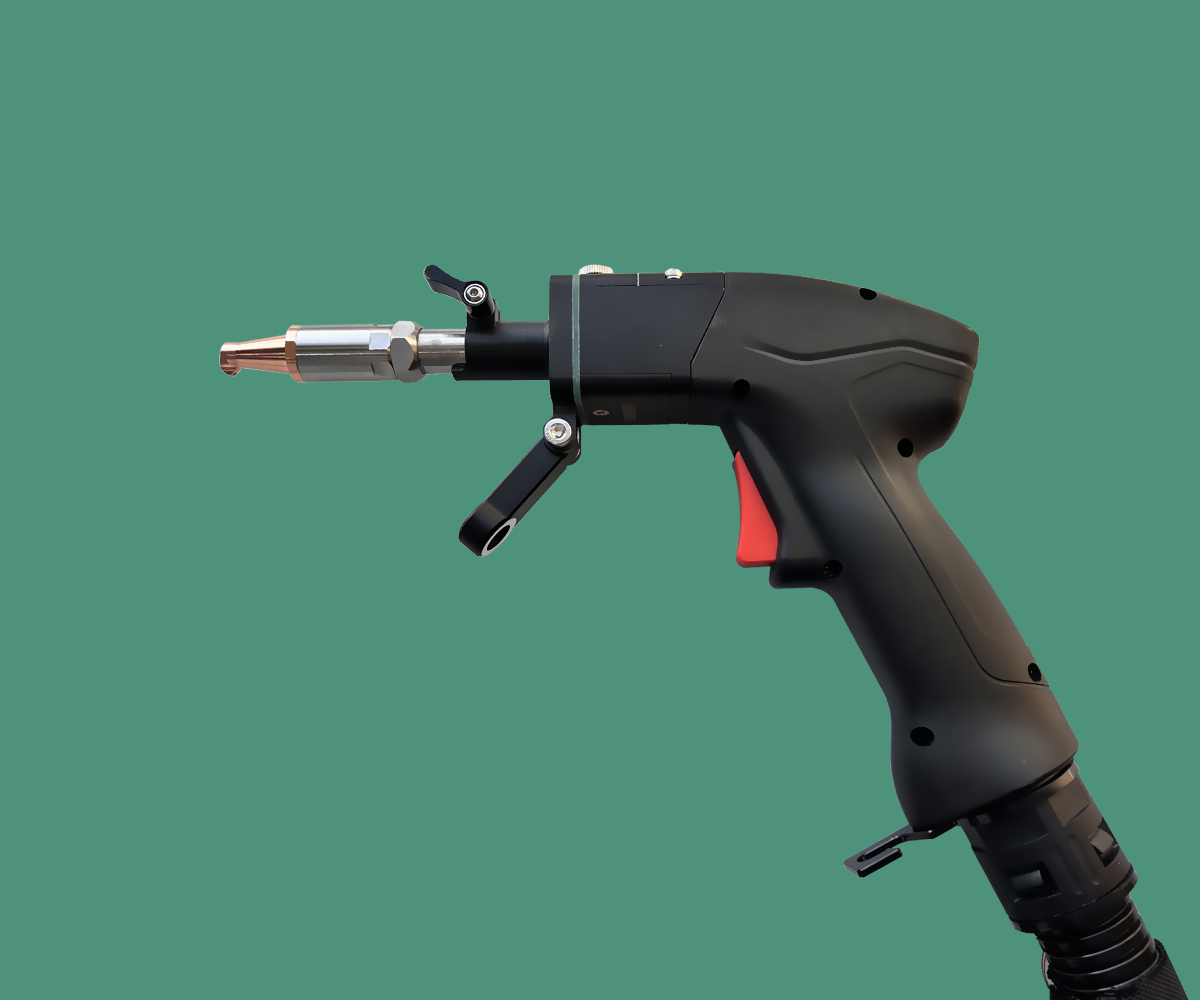

Type: Single-Axis Oscillating Handheld Torch
Weight: ≤0.85 kg
Oscillation Function: Adjustable amplitude 0-21 mm, frequency 0-30 Hz
Cooling Method: Air-cooled
Strong Process Adaptability: Supports continuous welding, spot welding, fish-scale welding, and multiple other processes (corresponding to the functions in the previous control system interface)
Ease of Operation: Protective lens can be pulled out and replaced, equipped with wire feeding and retraction functions (compatible with wire feeders)
High Durability: Double-sealed design, lens capable of withstanding high power, suitable for prolonged operation in industrial scenarios
Safety: Equipped with safety ground lock, laser trigger, and other protective devices, complying with industrial safety standards.

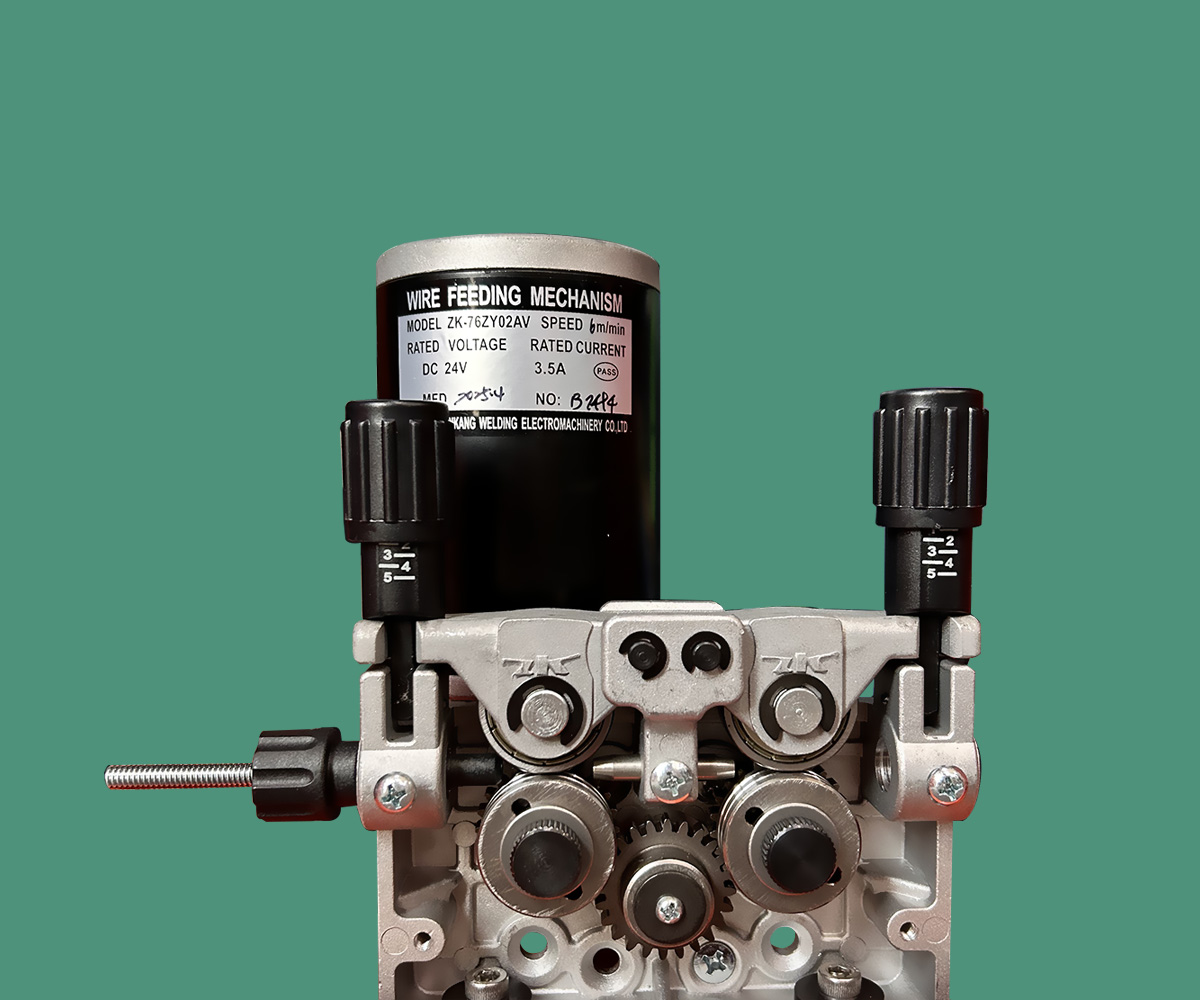

Model: ZK-672Y02AV
Power Supply: DC 24V/3.5A
Wire Feed Speed: 6 m/min (adjustable)
Compatible Wire Diameter: φ0.8-1.6 mm

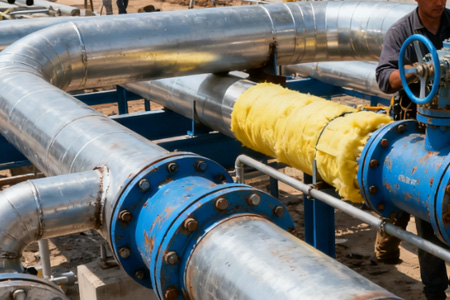

On-site temporary welding for steel structures and pipelines.
